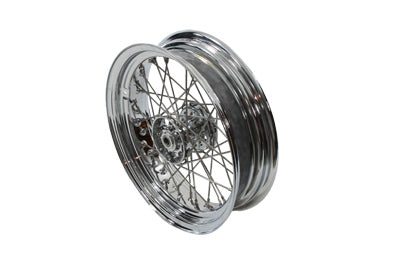

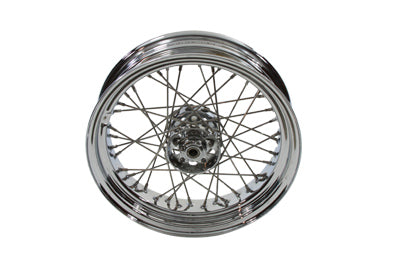

Replica 16 inch X 4.00 inch star hub type wheel kit includes a chrome hub chrome drop center rim stainless steel spokes and rubber rim strip. Wheel is assembled like stock with loose roller bearings. NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation. *NOTE: The valve stem hole is on the star side of the hub and measures 11/64 inch from the drum side flange. FITS HARLEY: 1936-1940 EL, Front or Rear 1941-1966 FL, Front or Rear 1937-1948 UL, Front or Rear 1936-1952 WL, rear only
MFG Part #:
Technote: When looking at the star side of the wheel the inner layer of spokes should point clockwise. Place straightedge across rim on brake side and measure the distance from straightedge to brake side spoke flange of hub. Measures 11/64inch when rim is correctly centered. Suggested to use #46-0114 Side Valve Rubber Stem Tube.
Dimensions:
Replaces OEM:
Made in: TAIWAN
NOTE: Part installation instructions are not provided unless a link is shown below:
