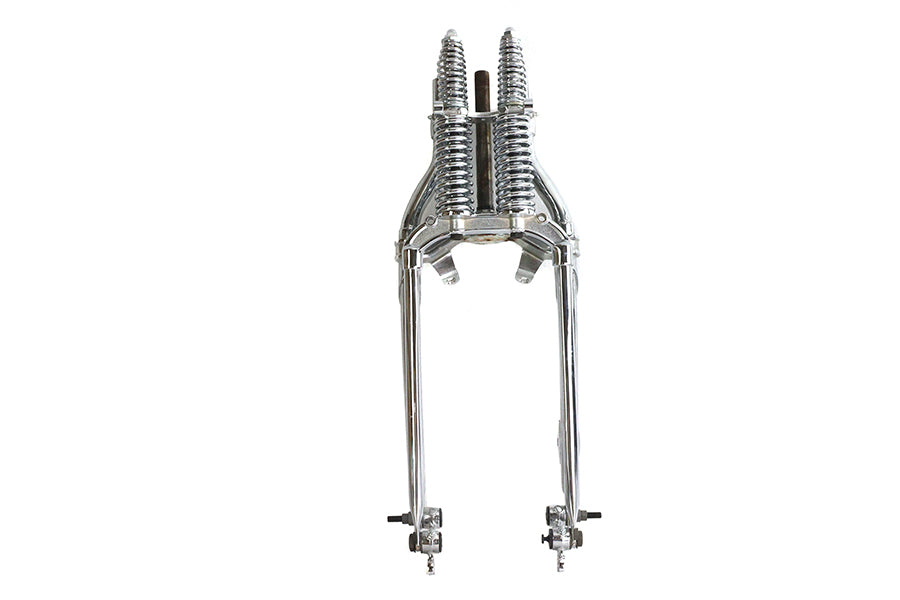

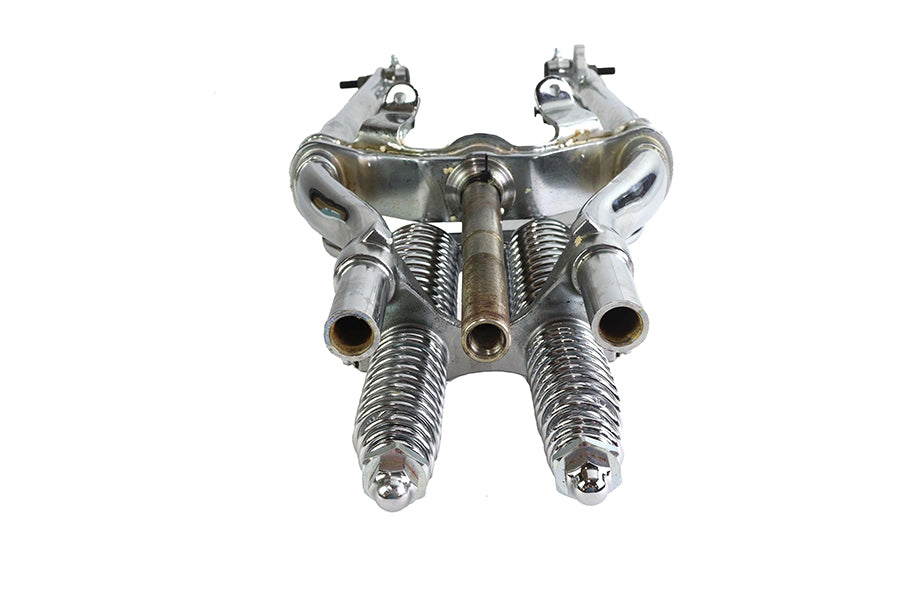

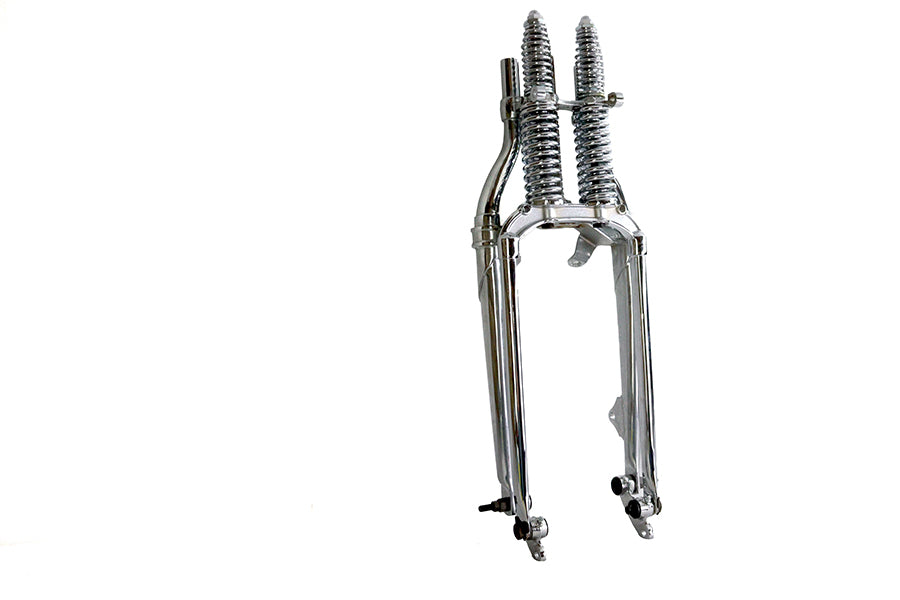

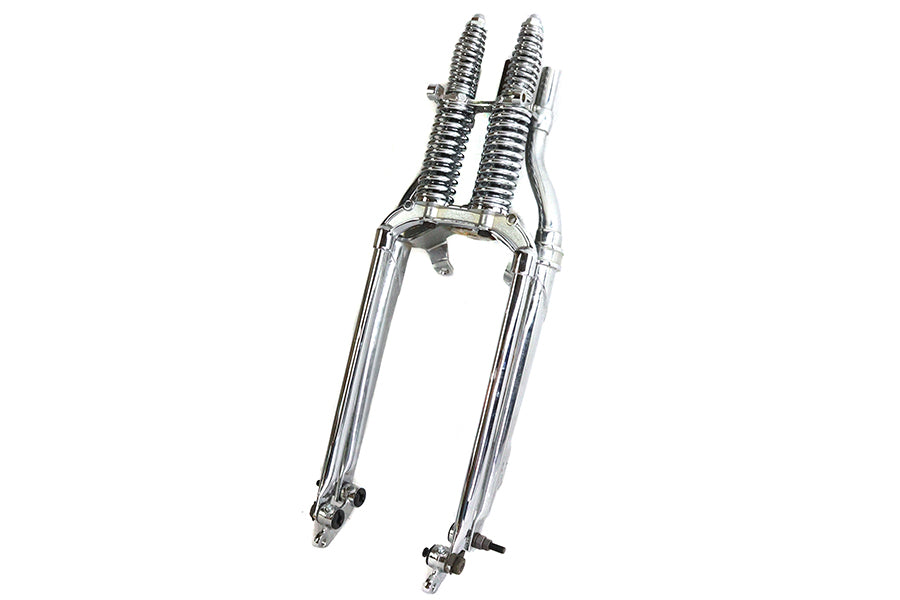

    HARLEY 18 inch Spring Fork Assembly Chrome WL 1936-1952

    HARLEY 18 inch Spring Fork Assembly Chrome WL 1936-1952

    $1,193.11
    $1,193.11 $1,250.64
    Shipping calculated at checkout.

    Hurry up! Only 1 items in stock.

    Expected delivery date:
    03 Dec Orders ship in 3-4 business days
    Mfg/Brand: V-Twin

    49-2413

    Unit includes inner and outer springs, chrome front and rear legs and inside black rockers for a 3/8" axle. For use with internal brake wheel. Includes all studs, bushings and spring rods with bushings.
    For use with a 7/8" neck. Top clamp, neck races, and cone nut are not included. Some assembly may be required. 1" tubes on rear legs are tapped 3/4"-16 to accept threaded riser bushing set, with this installed the builder can use a triple tree without ears and choice of post riser set. The 45 rockers are mounted in board of the fork legs and accept a 3/8" diameter axle. The distance between the rockers measure 6.5". These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube), to the front axle center line.
    More Information

    FITS
    WL 1936-1952

    Dimensions: Neck Stem: 7/8 inches / Legnth: 18 inches
    Replaces OEM:
    Unit is unpolished at the rear fork stem cross plate and at the front spring fork rod forging. / *NOTE: 45inch Spring Fork rockers are mounted to the inside of the fork and utilize a 3/8inch axle. 45inch Servi-Cars 1947-1957 use Big Twin rockers on the outside of the fork. / How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth / from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame / height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for / ease of installation.
    Instructions (if available, copy and paste link into browser): http://www.vtwinmfg.com/Instructions/49/49-2413.pdf
    Made in:
