HARLEY 18 inch X 2.15 inch Front or Rear Spoke Wheel Fits EL 1936-1940, FL 1941-1966, UL 1937-19

HARLEY 18 inch X 2.15 inch Front or Rear Spoke Wheel Fits EL 1936-1940, FL 1941-1966, UL 1937-19

$572.50
$572.50 $605.18
Shipping calculated at checkout.

Out of stock

Mfg/Brand: V-Twin

52-0877

Harley Model / Year Fitment: EL 1936-1940, FL 1941-1966, UL 1937-1948, WL 1936-1952, rear only

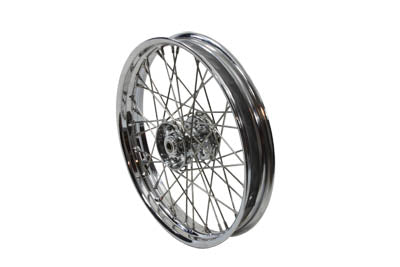

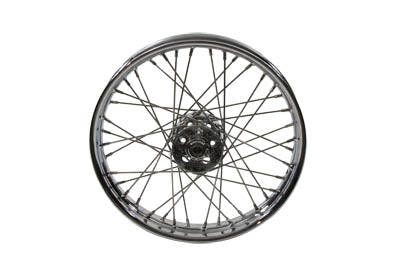

Replica 18 inch X 2.15 inch star hub type wheel kit includes a chrome hub chrome drop center rim polished stainless steel spokes and a rubber rim strip.
Wheel is assembled like stock with loose roller bearings. *NOTE: When lacing wheels we suggest using a 24mm long nipple set. *NOTE: The valve stem hole is on the star side of the hub and measures 3/16 inch from the drum side flange. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
MFG Part #: 64432
Technote: Suggested to use with #45-0922 40 Piece Spoke Nipple Set er Stainless steel when lacing 45 front drum wheels. Lay straightedge across brake side spoke flange of hub and measure distance from straight ede to rim. Measures 1/4inch when rim is correctly cen
Dimensions:
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 52-1018 , 45-0748 , 16-1765 , 16-1615
NOTE: Part installation instructions are not provided unless a link is shown below:
