HARLEY 45 inch WL Frame and Fork Kit Fits WL 1936-1952,

HARLEY 45 inch WL Frame and Fork Kit Fits WL 1936-1952,

$3,515.38
$3,515.38 $3,661.85
Shipping calculated at checkout.

Hurry up! Only 1 items in stock.

Expected delivery date:
11 Oct Orders ship in 3-4 business days
Mfg/Brand: V-Twin

55-1699

Harley Model / Year Fitment: WL 1936-1952,

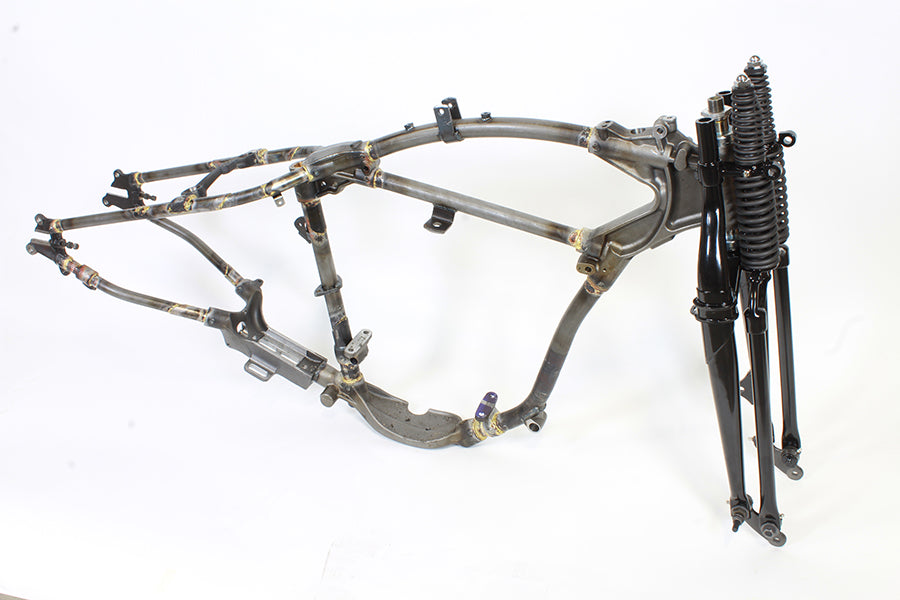

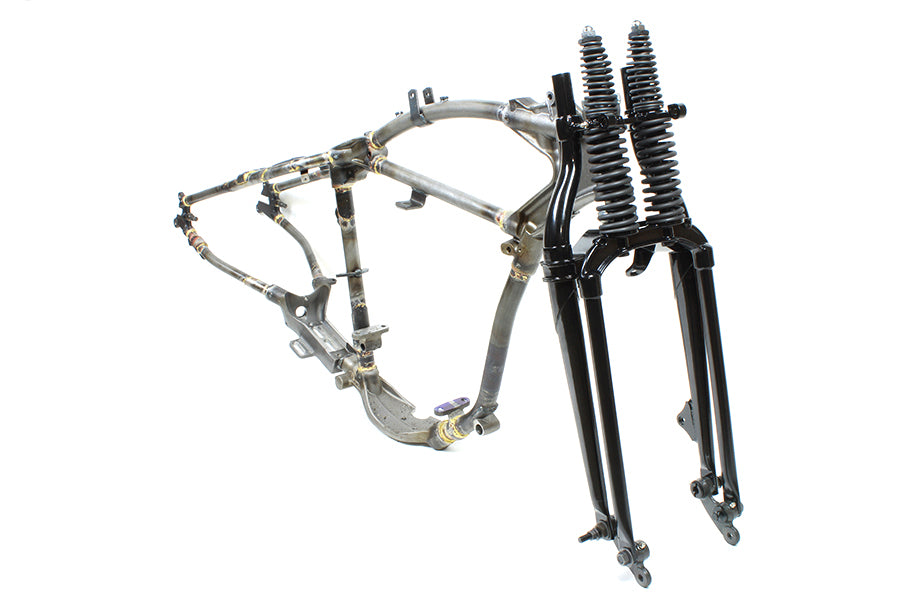

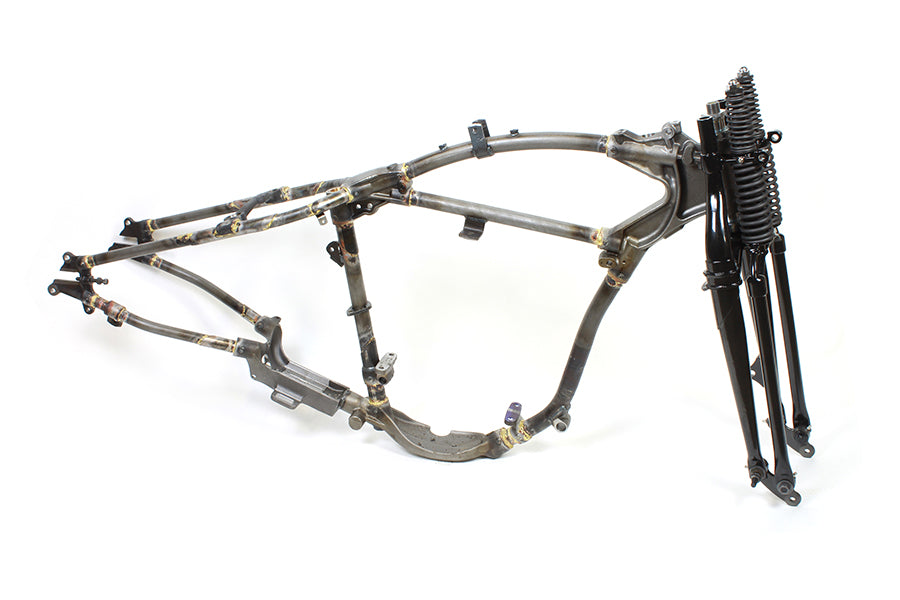

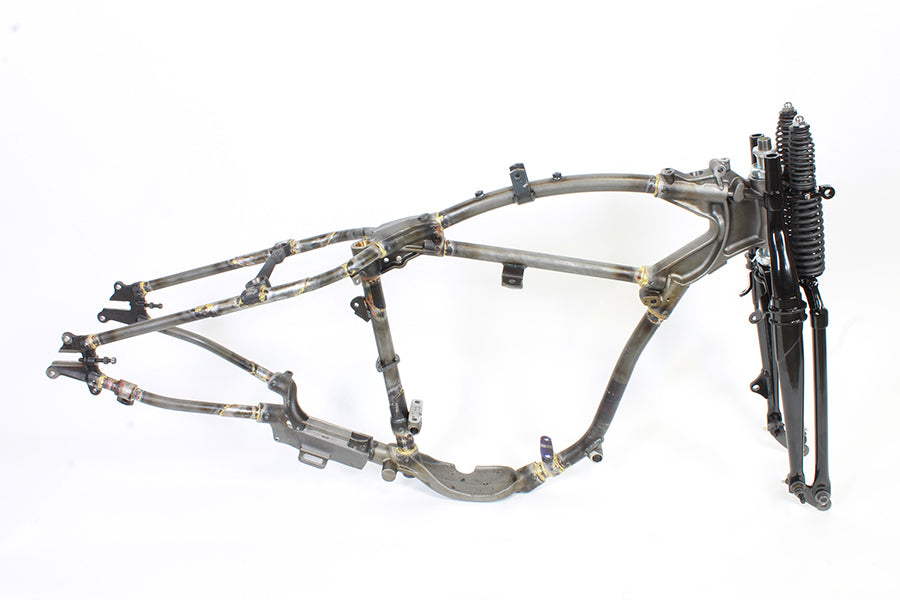

45 inch WL frame and fork kit includes a replica 45 inch W rigid frame a black 28 inch inline Spring Fork assembly and a zinc fork neck cup set.
The stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. The 45 rockers are mounted inside of the fork legs and accepts a 3/8 inch diameter axle. The replica 45 W stock style rigid frame with brazed joints features a raw finish. There's no Manufacturere's Statement of Origin only a Bill of Sale. Don't forget the pre-assembly procedure! Before primer and paint the frame will require de-greasing. Frame accepts 3 bolt transmission case. Top frame tube has threaded inserts to attach center tank panels. Threads are for #8822-18 bolt set. Fork assembly includes inner and outer springs front and rear legs and spring rod with bushings. Top clamp neck races and cone nut are not included.
MFG Part #:
Technote: Suggested to use with #44-0716 45inch Front Wheel Hub Internal Kit *NOTE: UPS may consider this part as packages inchoversizeinch for shipment as compared to the actual weight which will result in higher shipping costs.
Dimensions:
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 55-1951 , 55-1950 , 55-1651 , 51-1017 , 51-1017 , 49-2400 , 24-0110
NOTE: Part installation instructions are not provided unless a link is shown below:
