HARLEY 750 XR Rear Wheel Hub Alloy Fits XL 1957-1984,

HARLEY 750 XR Rear Wheel Hub Alloy Fits XL 1957-1984,

$199.47
$199.47 $223.12
Shipping calculated at checkout.

Hurry up! Only 4 items in stock.

Expected delivery date:
14 Oct Orders ship in 3-4 business days
Mfg/Brand: V-Twin

45-0107

Harley Model / Year Fitment: XL 1957-1984,

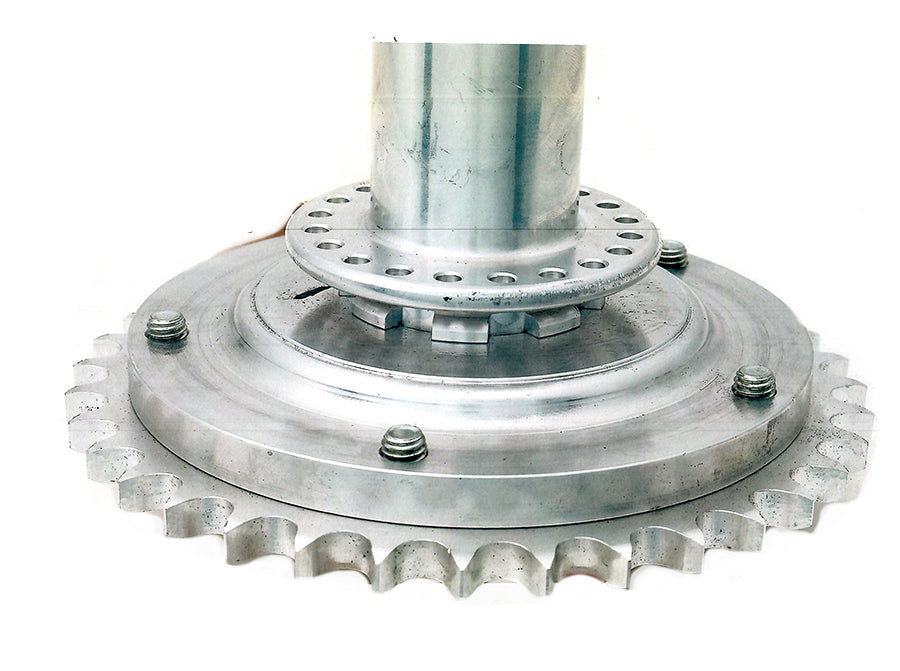

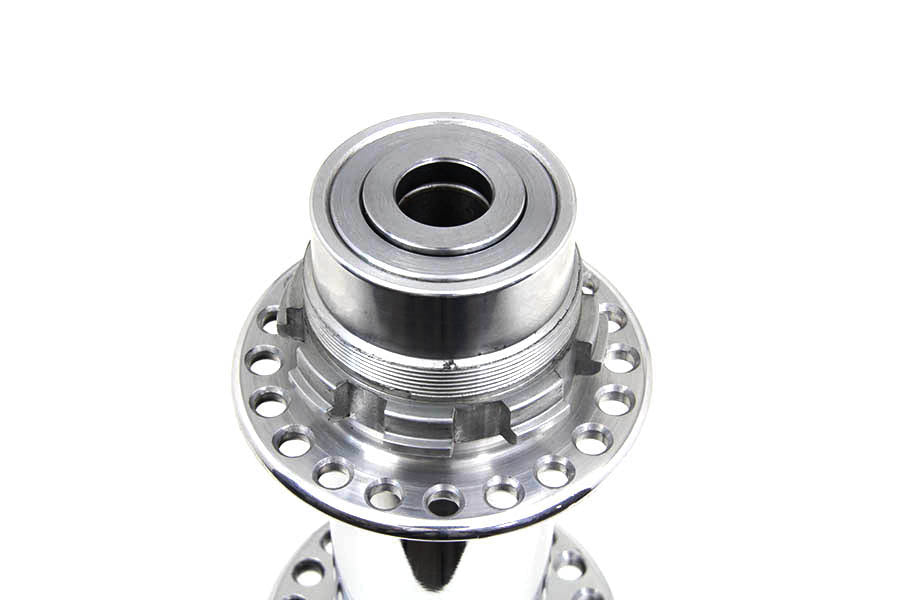

750 XR rear wheel hub features an alloy finish and includes 2 nuts. For 40 spoke hole rims.
Features knock off threaded end for inchquick change inch rear sprockets. Includes 11/16 bearings to fit stock sportster axles that are pre 1979 models and one lock nut. Accepts 11/16 inch axle shaft and 6-8 gauge spokes. Accepts 38 tooth splined rear sprocket 49 tooth splined engine sprocket and 51 tooth splined engine sprocket. *NOTE: Alloy splined adapter is for sprocket and disc mounting. Disc mounting is a very close fit and should be tapped with rubber mallet - being careful not to damage splines. Order additional set of XR 750 hub lock nut separately.
MFG Part #: 61020
Technote: Suggested to use with #44-0482 XR 750 Rear Hub Lock Nut Set Zinc. Suggested to use with #19-0168 38 Tooth Splined Rear Sprocket Suggested to use with #19-0172 49 Tooth Splined Rear Sprocket. Suggested to use with #19-0173 51 Tooth Splined Rear Sprocket. S
Dimensions: Hub Length: 7-1/8 inches Center to Center: 1/2 inches
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 45-0115 , 45-0110 , 19-0144 , 16-0467
NOTE: Part installation instructions are not provided unless a link is shown below:
