Bobbed gas tank set features provisions to accept early caps reserve shut off rod and two or three light dash. Tank has emblem mount strips attached. Order emblem set separately. Tank emblem mount screws not included. Tank features indents for shifter gate. Check the shut off opening making sure the shut off valve can be easily installed. The shut off fitting should be masked or plugged during painting for easy installation of the shut off valve. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. All tanks or tank sets will require hand fitting to give correct alignment for dash and fuel line fitment. Dash will also have to be shimmed when installed to achieve correct height. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. FITS HARLEY: 1947-1950 FL
Dimensions:
Replaces OEM:
Suggested to use #41-0113 Kreem gas tank combo kit / Suggested to use #38-0232 shut off kit. / Suggested to use #9893-18 tank mount kit. / Suggested to use with #49-0075 Left Side Tank Hand Shifter o Gate for 4 speed transmissions. / Suggested to use with #49-0111 Chrome 3 Speed and Reverse o Left Side Tank Hand Shifter Gate. / Suggested to use with #16-0615 Gas Tank Fuel Rod Alignment Tool.
Instructions (if available, copy and paste link into browser):
Made in: TAIWAN

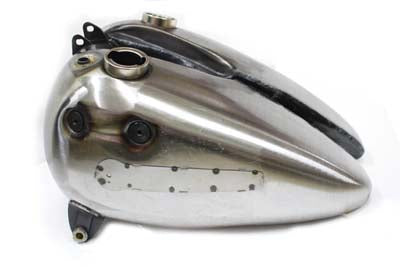

HARLEY Bobbed 3.5 Gallon Gas Tank Set 1947-1950 FL
Regular price
$337.78
Sale price
$337.78
Regular price
$364.77
Unit price/ per
