HARLEY Bobbed 4.0 Gallon Gas Tank Fits FXD 1991-2005,
HARLEY Bobbed 4.0 Gallon Gas Tank Fits FXD 1991-2005,
Regular price
$436.86
Sale price
$436.86
Regular price
$474.85
Unit price
/
per
Shipping calculated at checkout.
Hurry up! Only 3 items in stock.
Expected delivery date:
08 Sep
Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling
SKU:38-0123
Harley Model / Year Fitment: FXD 1991-2005,

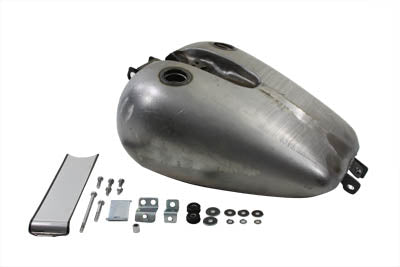

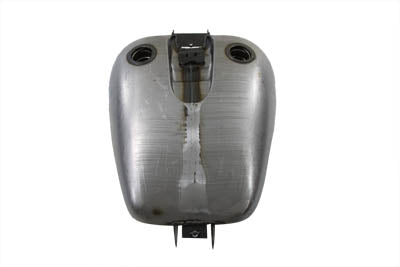

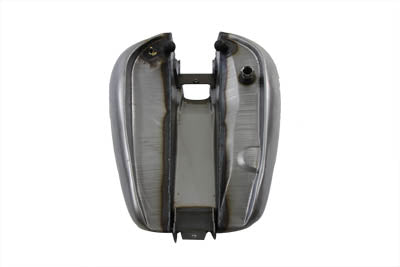

Gas tank is one piece with a left side petcock location and has a fuel capacity of 4.0 gallons. Tank has dash cutout that requires the use of a FXDWG 2 or 3 light dash cover and includes a chrome dash panel.
*NOTE: Stock FXD dash cannot be used. Requires purchase of complete FXDWG 2 or 3 light dash kit. Check the tank for flaws or fit before painting. Bolts on with no additional hardware. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. The peptcock fitting should be masked or plugged during painting for easy installation of the petcock. Gas tank does not feature a vent nipple for the fuel gauge inside the dash mount area. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
MFG Part #: 11482
Technote: Requires #39-0124 speedometer adapter to reuse existing speedometer in a bobbed dash for 1996-05 FXD models. Suggested to use with #38-0320 Ratcheting Style Gas Cap Set Vented and Non-Vented
Dimensions: Top Length: 18-1/2 inches Bottom Length: 18 inches Rear Width: 10 inches Front Width: 14 inches Rear Height: 1-1/4 inches Front Height: 8-3/4 inches Front Tunnel Height: 7 inches Rear Tunnel Height: 1-1/2 inches Tunnel Length: 17 inches Dash Mount Bracket
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 41-0113 , 39-0967 , 35-0591
NOTE: Part installation instructions are not provided unless a link is shown below:
