HARLEY Chopper Peanut Gas Tank Fits Custom 0- , application

HARLEY Chopper Peanut Gas Tank Fits Custom 0- , application

$193.01
$193.01 $215.90
Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:
08 Sep Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling

38-0783

Harley Model / Year Fitment: Custom 0- , application

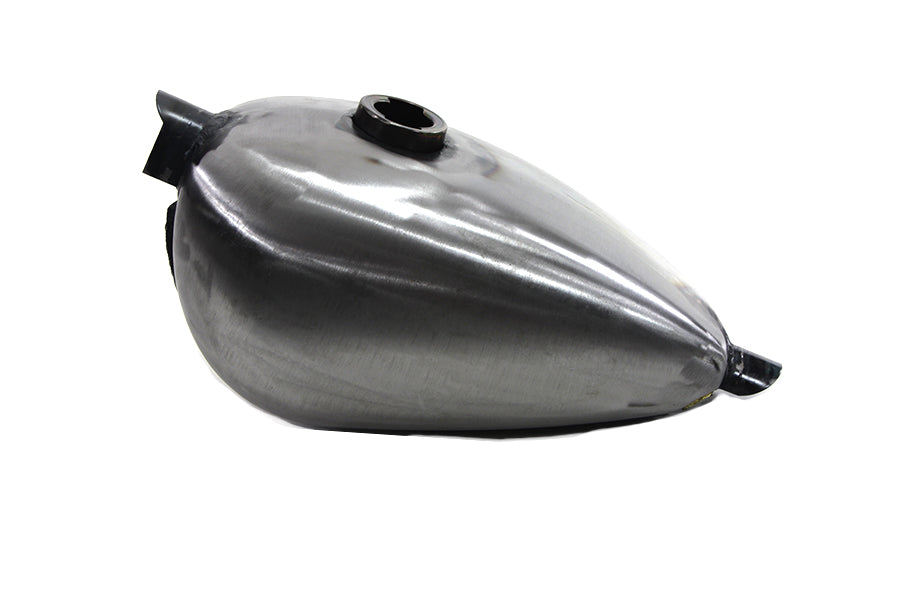

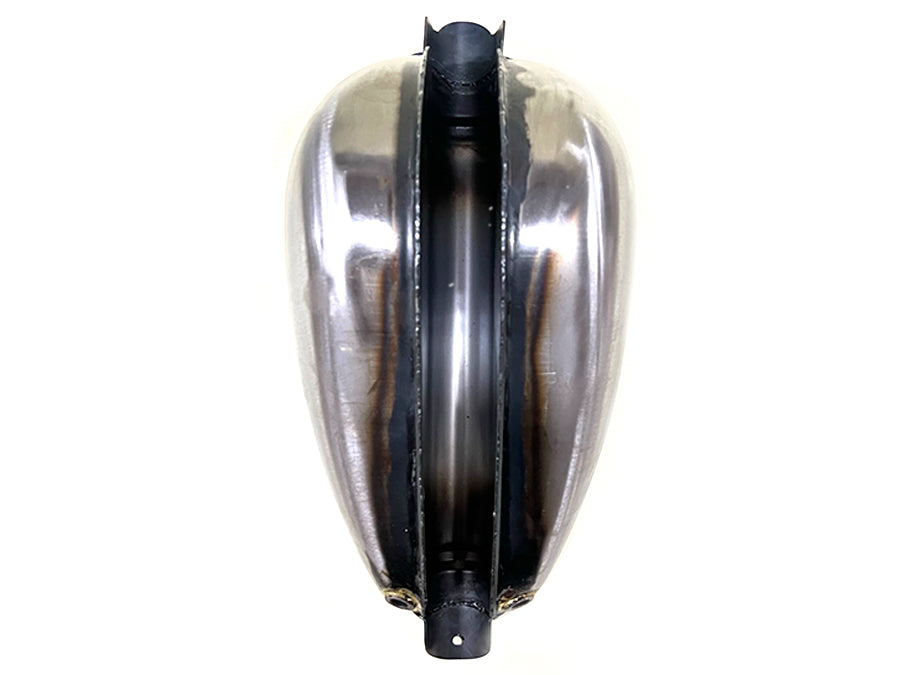

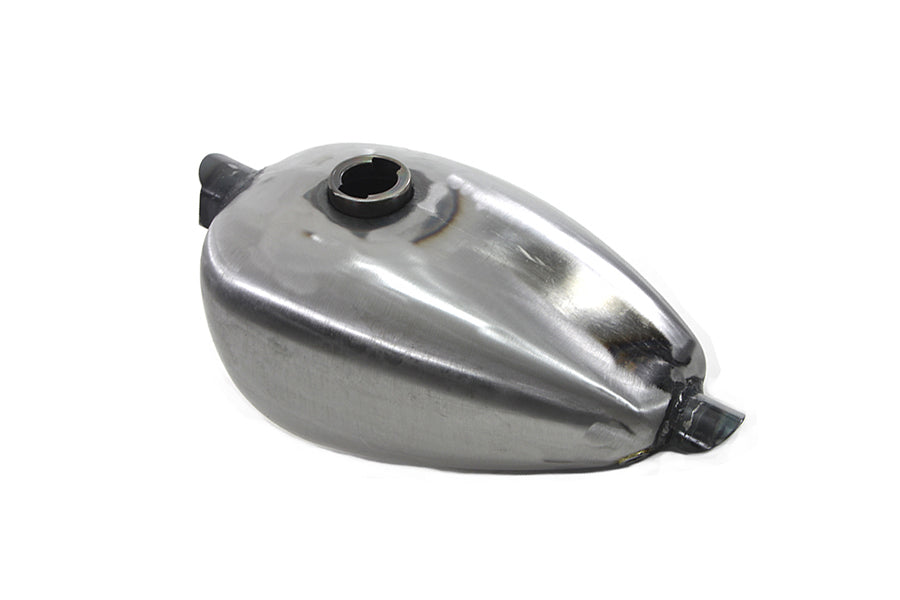

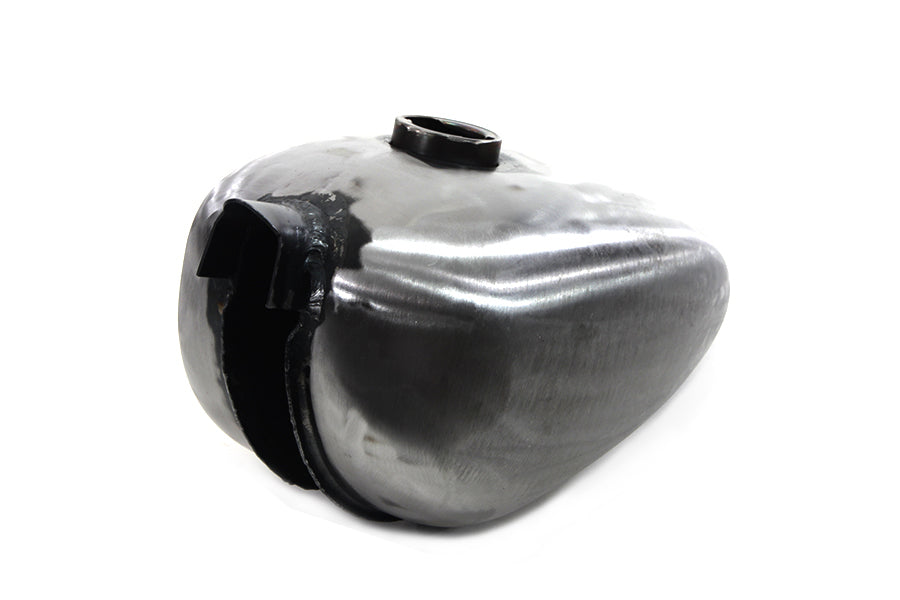

Gas tank has a fuel capacity of 2.0 gallons. Tank is a single cap design with front and rear saddle style brackets to fit 1-1/2 inch frame tubing. It can be bolted or clamped in place. Tank accepts Bayonet type caps.
It accepts a 1/4 inch National Pipe Thread petcock and a stock style vented cap. Tank fits over 1-1/2 inch frame tube. *NOTE: Features a deep tunnel. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
MFG Part #: 38-0783 LIN
Technote: Tab mounts must be fabricated and welded on by customer. Suggested to use with #38-1647 Chopper Peanut Gas Tank Mount Tab Set Raw. Tedd Cycle was awarded Hap Jones distribution rights in the spring of 1976 including Avon Tyres from Hap Jones personally.
Dimensions: Top Length: 14-3/4 inches Bottom Length: 14-1/8 inches Rear Width: 3-7/8 inches Front Width: 8-1/2 inches Rear Height: 2 inches Front Height: 7 inches Front Tunnel Height: 6 inches Rear Tunnel Height: 1 inches Tunnel Length: 17-5/8 inches Tunnel Width: 1-
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 38-0985 , 38-0948 , 38-0922
NOTE: Part installation instructions are not provided unless a link is shown below:
