HARLEY Frame and Fork Kit Fits FL 1946-1946, UL 1946-1948,

HARLEY Frame and Fork Kit Fits FL 1946-1946, UL 1946-1948,

$3,883.82
$3,883.82 $4,045.65
Shipping calculated at checkout.

Hurry up! Only 4 items in stock.

Expected delivery date:
11 Oct Orders ship in 3-4 business days
Mfg/Brand: V-Twin

55-0001

Harley Model / Year Fitment: FL 1946-1946, UL 1946-1948,

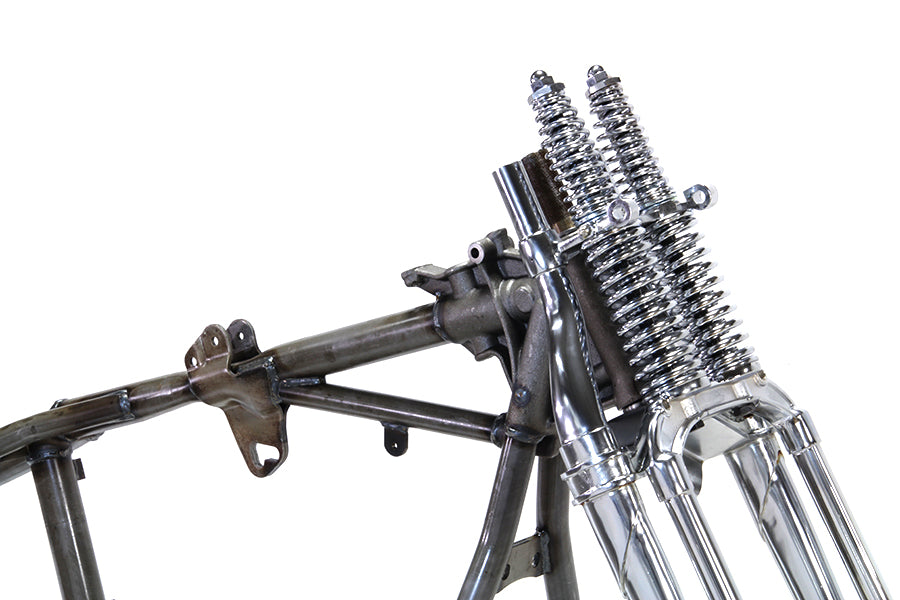

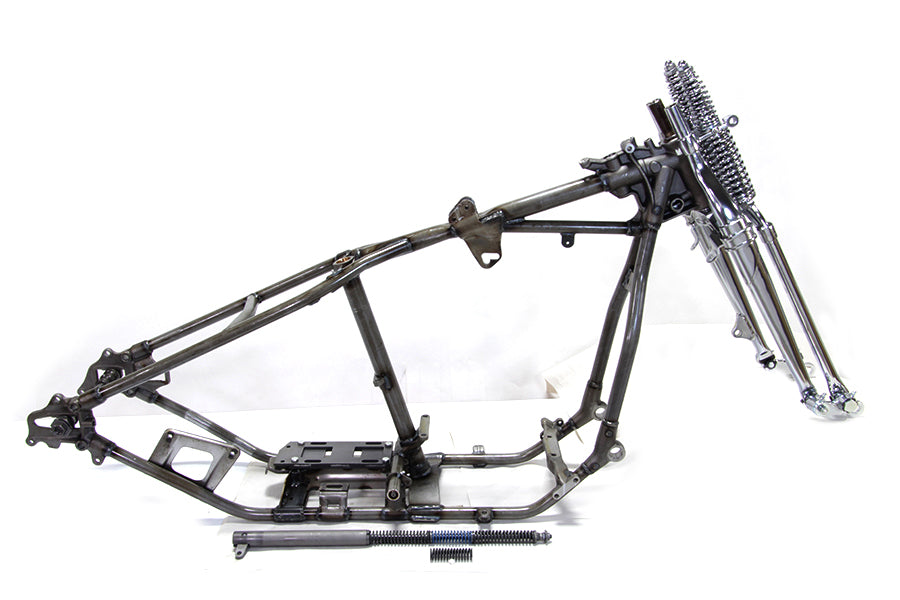

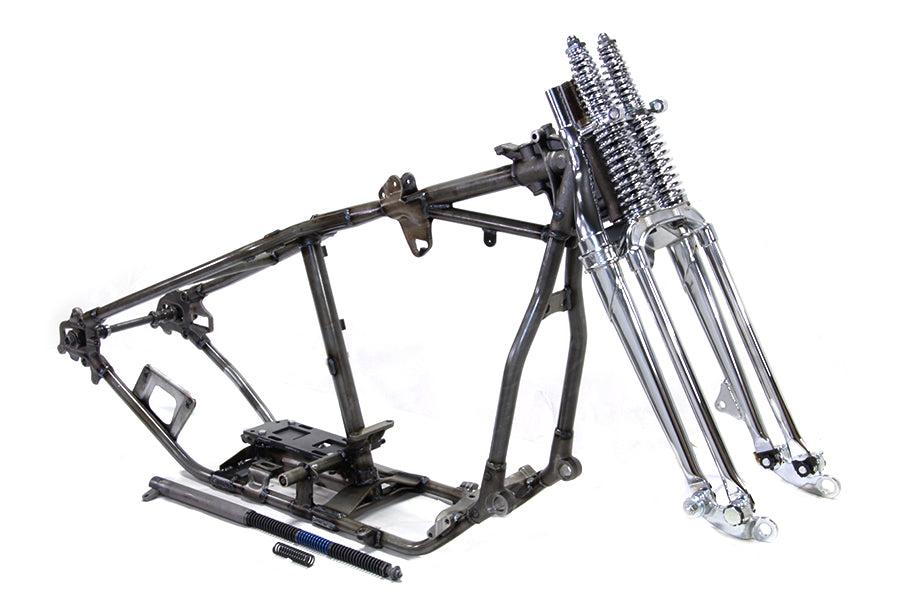

Frame and fork kit includes replica wishbone frame kit and 28 inch offset spring fork assembly that features a chrome finish.

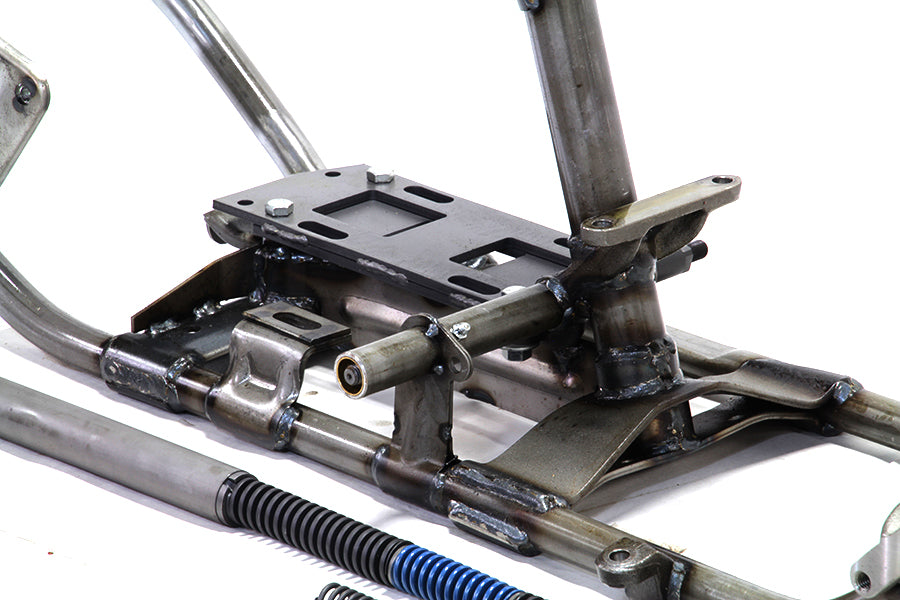

Frame will accept Panhead or Shovelhead engine with 4-speed transmission also accepts Knuckle or Flathead engines with use of a 3/8 inch front engine mount spacer. Features seat post axle transmission plate mechanical brake cross shaft bushings tool box mount and grease fittings already installed. Cross bar features a cable mount tab under the gas tank. Forged parts include: Neck front and rear engine mounts side car mounts top seat post yoke footboard tabs and rear axle plates. Neck will accept key lock. Must order lower tank frame mount separately. *NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. Therefore frame will not be accepted for return (RGA). *NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplys a Bill of Sale only referencing the part number. *Note: UPS may consider this partas packaged inchoversize inch for shipment as compared to actual weight which will result in higher shipping costs.
MFG Part #:
Technote: Suggested to use with #51-0545 Lower Tank Frame Mount with Cross Plate.
Dimensions:
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 49-2412 , 27-0126 , 16-0529 , 16-0178
NOTE: Part installation instructions are not provided unless a link is shown below:
