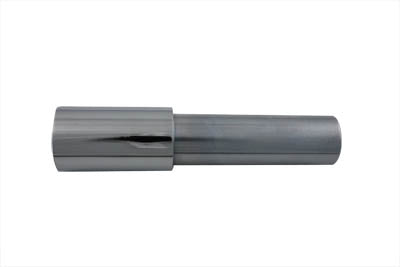

HARLEY Handlebar Throttle Spark Control Spiral Fits EL 1936-1940, FL 1941-1948, UL 1937-1948,

Name: HARLEY Handlebar Throttle Spark Control Spiral Fits EL 1936-1940, FL 1941-1948, UL 1937-1948,
Brand: V-Twin
SKU: 49-0087
Price: 58.76 USD
Availability:  InStock

$58.76

$58.76 ~~$65.73~~

Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:

16 Sep Orders ship in 3-4 business days

Mfg/Brand: V-Twin

SKU:49-0087

Harley Model / Year Fitment: EL 1936-1940, FL 1941-1948, UL 1937-1948, WL 1935-1952, VL 1935-1936, G 1935-1952,

Chrome Spring Fork handlebar throttle spiral is pull type.

To activate the linkage on the Keihin Bendix carburetor you are required to do the pulling and the linkage will open to the throttle. *NOTE: Spiral uses 1-1/8 inch inner diameter grips on both sides.

MFG Part #: 331203

Technote: Direction of the internal spiral is counter-clockwise

Dimensions: Length: 6 inches Width @ Wide Side: 1-1/4 inches Width @ Small End: 1 inches

Replaces OEM: 3312-42 56246-35

Made in: TAIWAN

Available Replacement Components / Related Part #s : 49-1742 , 16-1011 , 16-1003 , 16-0178

NOTE: Part installation instructions are not provided unless a link is shown below:
