HARLEY Lowered Rear Axle Plate Set Raw Fits FL 1973-1984, XL 1979-UP, FX 1973-1984,

HARLEY Lowered Rear Axle Plate Set Raw Fits FL 1973-1984, XL 1979-UP, FX 1973-1984,

$147.57
$147.57 $165.07
Shipping calculated at checkout.

Hurry up! Only 4 items in stock.

Expected delivery date:
11 Oct Orders ship in 3-4 business days
Mfg/Brand: V-Twin

51-1322

Harley Model / Year Fitment: FL 1973-1984, XL 1979-UP, FX 1973-1984,

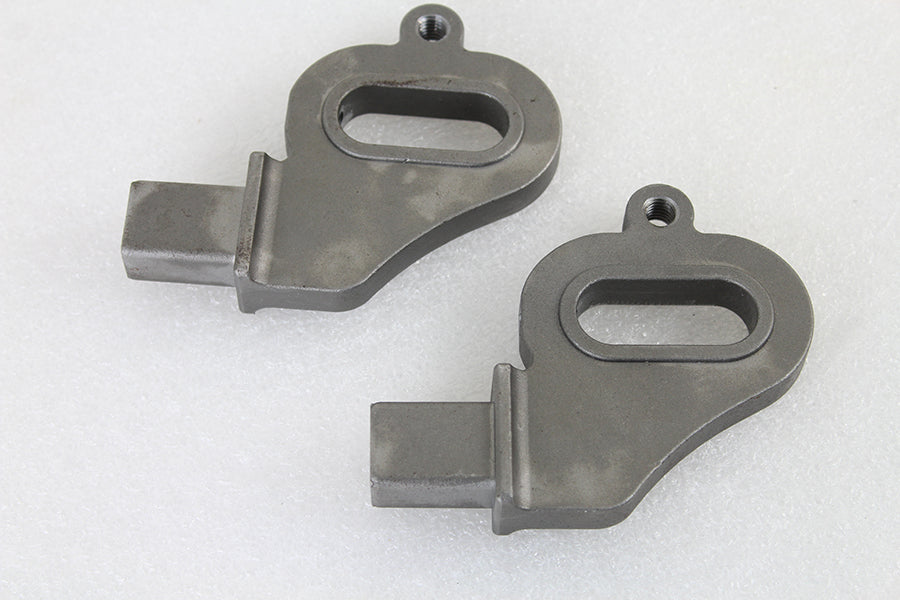

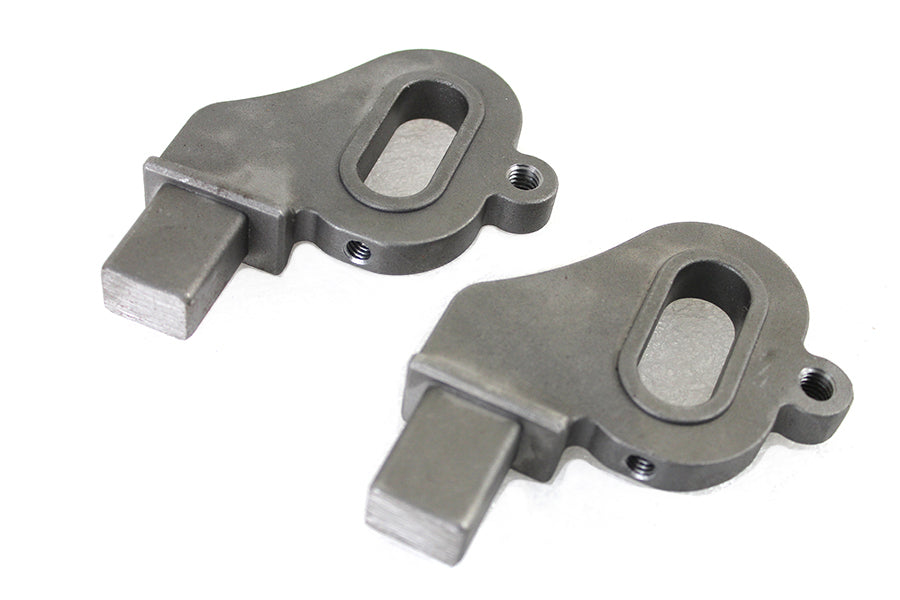

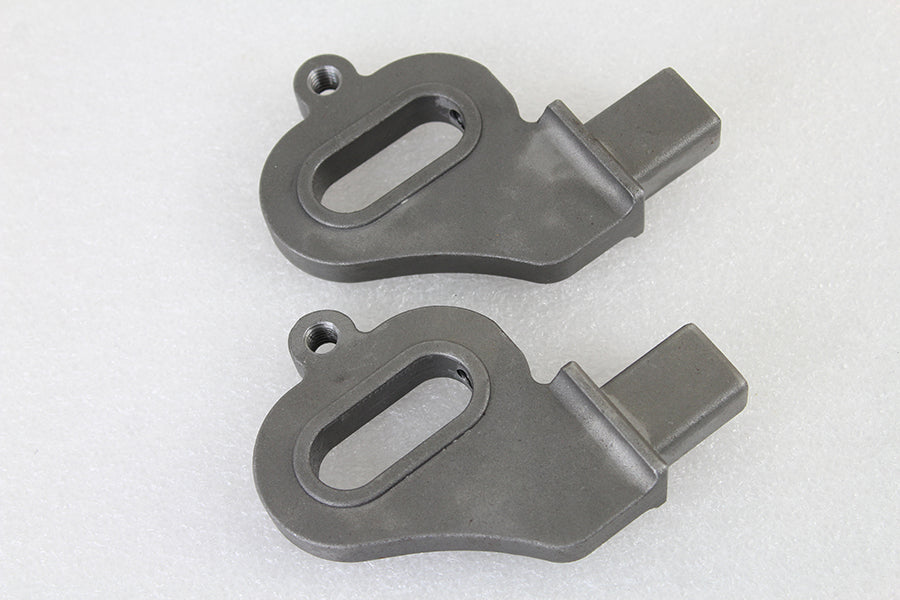

Lowered rear axle plates are threaded 3/8 inch-18 for fender brace sissy bar mounting. Adjusters threaded 3/8 inch-24 use screws for adjusters to act as push type. Features a raw cast steel construction.
Axle mounts accept 3/4 inch axle mounts will need material added to fit tight into rectangular swingarm tubing. Recommended plug weld from sides as well. Use axle and spacers or 3/4 inch threaded rod for alignment purposes. Lowers the bike 1-1/2 inch. *NOTE: Welding and fabrication required for installation. Cut original rectangular swingarm to desired length. Fabricator must cut swingarm and reweld lowering axle plates in place and check fender clearance. *NOTE: Must be welded in place. Use rigid frame wheel adjusters.
MFG Part #:
Technote: Suggested to use with #9629-2T Rear Chain Adjuster Parkerized.
Dimensions:
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 9629-2T , 51-0898
NOTE: Part installation instructions are not provided unless a link is shown below:
