HARLEY Raw Spring Fork Front Fender Fits EL 1936-1948, FL 1936-1948, G 1941-1957,

HARLEY Raw Spring Fork Front Fender Fits EL 1936-1948, FL 1936-1948, G 1941-1957,

$225.95
$225.95 $245.60
Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:
16 Sep Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling

50-0474

Harley Model / Year Fitment: EL 1936-1948, FL 1936-1948, G 1941-1957,

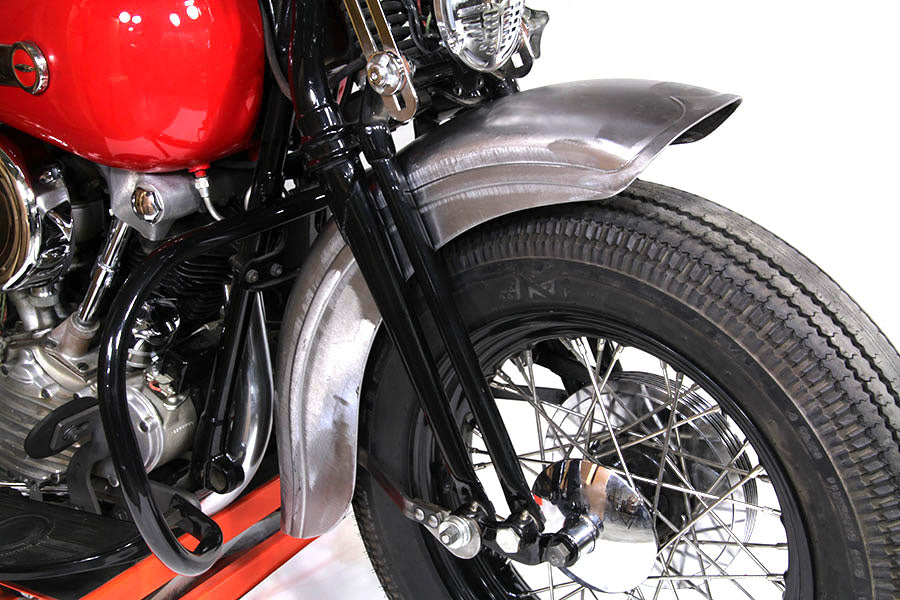

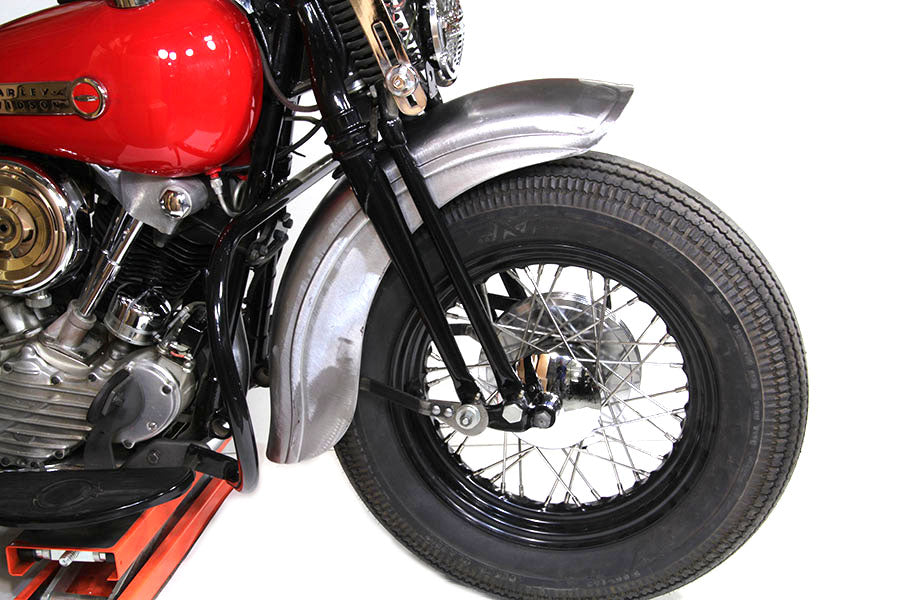

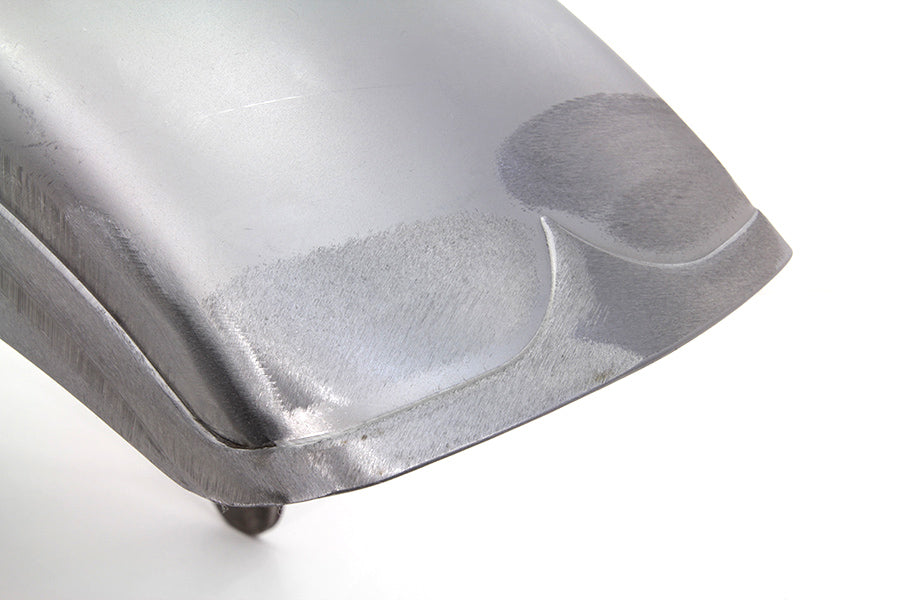

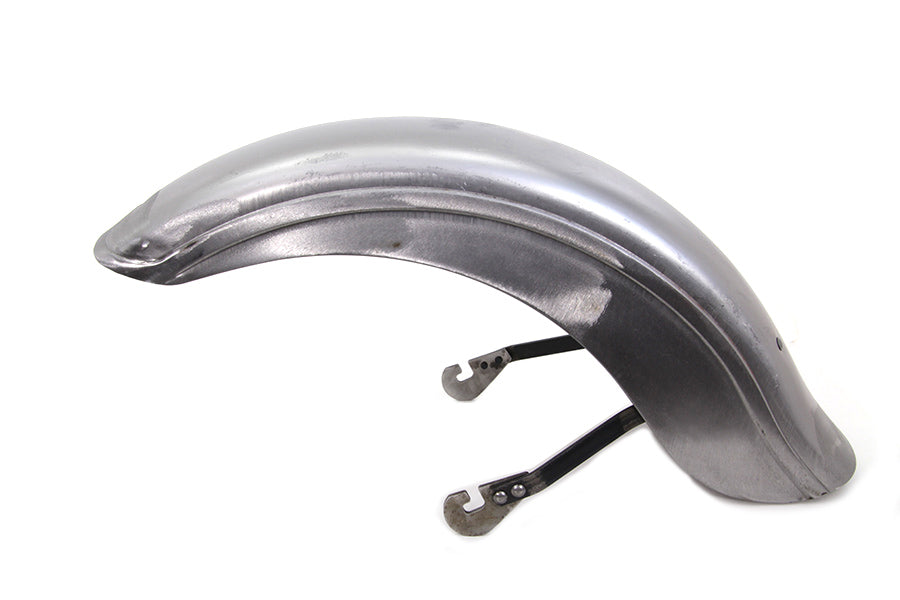

Raw Spring Fork front fender is a bobbed shorter version of an OE fender. The fender is supported on top by Spring Fork rear leg tabs and lower rear brackets.
Fender brace is 11-1/8 inch wide. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. Before priming or painting fit the fender body braces and mounting points in place. Fender rivets hinge and brackets will have to be tweaked for final fitment. Patience is required for proper installation!
MFG Part #:
Technote:
Dimensions: Fender Brace Width: 11-1/8 inches Inside Width: 7-1/2 inches Outside Width: 7-3/4 inches Bracket Inside Width: 10-3/4 inches Fender Width: 7-1/4 inches
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 49-1924 , 49-1330 , 49-0034 , 22-0740
NOTE: Part installation instructions are not provided unless a link is shown below:
