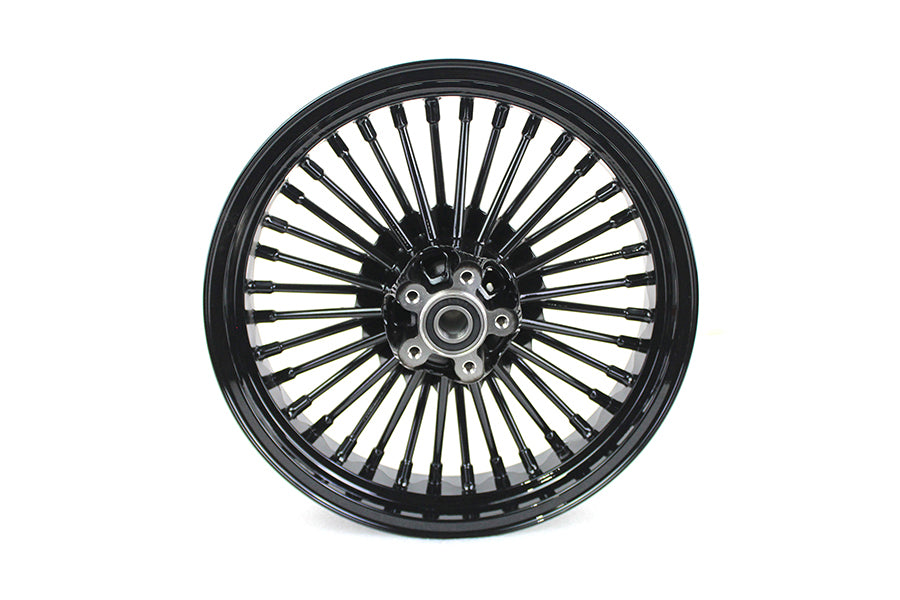

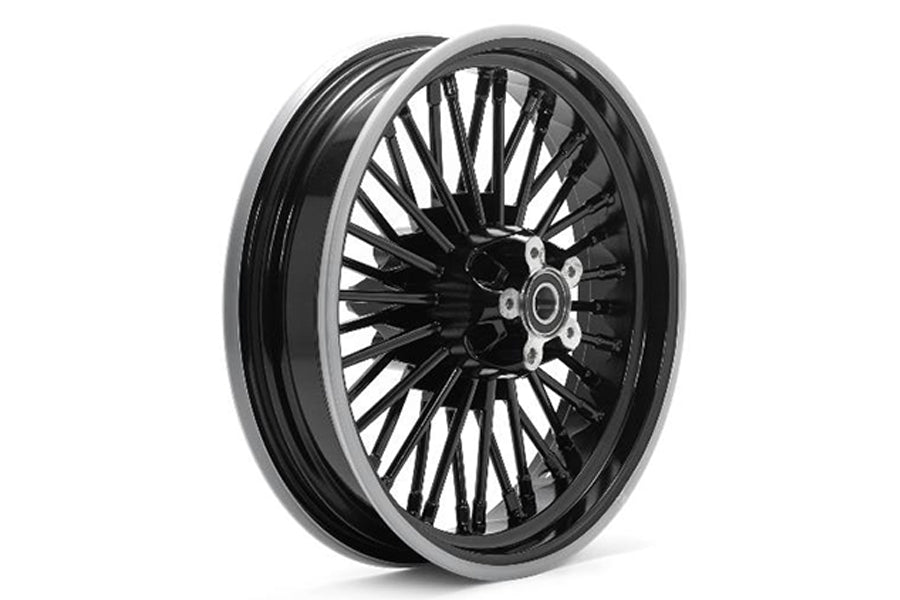

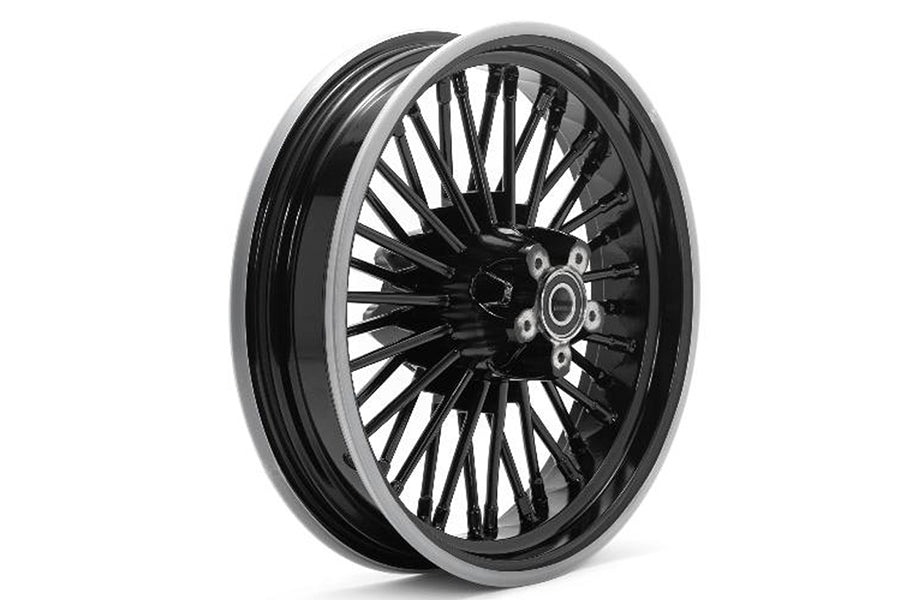

HARLEY Rear 16 inch x 3.5 inch Duro 36 Fat Spoke Matte Black Wheel fits 2006-2009 FXD, 2005-2007 FLT, 2005-2007 XL, 2000-2008 FXST,
HARLEY Rear 16 inch x 3.5 inch Duro 36 Fat Spoke Matte Black Wheel fits 2006-2009 FXD, 2005-2007 FLT, 2005-2007 XL, 2000-2008 FXST,
Regular price
$403.77
Sale price
$403.77
Regular price
$438.88
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Mfg/Brand: V-Twin
SKU:52-0008
***LIMITED ITEM PLS ALLOW 4 BUSINESS DAYS HANDLING TO SHIP*** Rear 16 inch x 3.5 inch Duro 36 Fat Spoke wheel features a matte black finish and 25mm bearings without flanges. Wheel hub includes installed 25mm sealed bearings and has 7/16-14 pulley mount threaded hole and a 3/8-16 brake disc mount threaded hole. Wheel bearing adapter sleeve sets available separately. *NOTE: Can be used on earlier models if fitted with step-down spacers 25mm - 3/4 inch. *NOTE: Wheel may require changing wheel bearings which are 25mm 3/4 inch or 1 inch may be required. *NOTE: The rim width is 109mm from flange to flange and 89mm from bead to bead. *NOTE: Wheels will bolt on to models that are listed. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. FITS HARLEY: 2006-2009 FXD, 2005-2007 FLT, 2005-2007 XL, 2000-2008 FXST,
This part only fits the models shown above! Please contact us with any additional fitment questions you may have.
MFG Part #: 52-0008
Replaces OEM #:
Alt Part #: HD-RW-C362-BLA
Dimensions:
Please read the following tech notes carefully before buying to avoid mistakes: 1. The wheel fits Harley bikes with 25mm axle. / 2. If your model has 3/4inch (19mm) axles you will need reducers to match our 25mm wheel bearing. / 3. If your model is with ABS please use your original bearing or buy a new one to replace our bearing. / 4. Rotors with a 56mm inner diameter can fit for our wheels. If your model's rotor is 50mm you will need to replace it. / *NOTE: Bearings required .759inch 1inch or 25mm. Generally: .750inch = pre 2000 1inch = 2000-07 and 25mm = 2008-up. Check original bearing size. / Suggested to use with #44-0057 Cast Wheel Spacer Set Zinc Plated / Suggested to use with #44-0058 Cast Wheel Spacer Set Zinc Plated / Suggested to use with #44-0059 Cast Wheel Spacer Set Zinc Plated
Instructions (if available, copy and paste link into browser): http://www.vtwinmfg.com/Instructions/52/52-0008.pdf
Made in: CHINA
