HARLEY Replica 1936 Knucklehead Black Oil Tank Fits EL 1936-1940, FL 1941-1957, UL 1938-1947,

HARLEY Replica 1936 Knucklehead Black Oil Tank Fits EL 1936-1940, FL 1941-1957, UL 1938-1947,

$336.76
$336.76 $366.04
Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:
08 Sep Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling

40-0636

Harley Model / Year Fitment: EL 1936-1940, FL 1941-1957, UL 1938-1947,

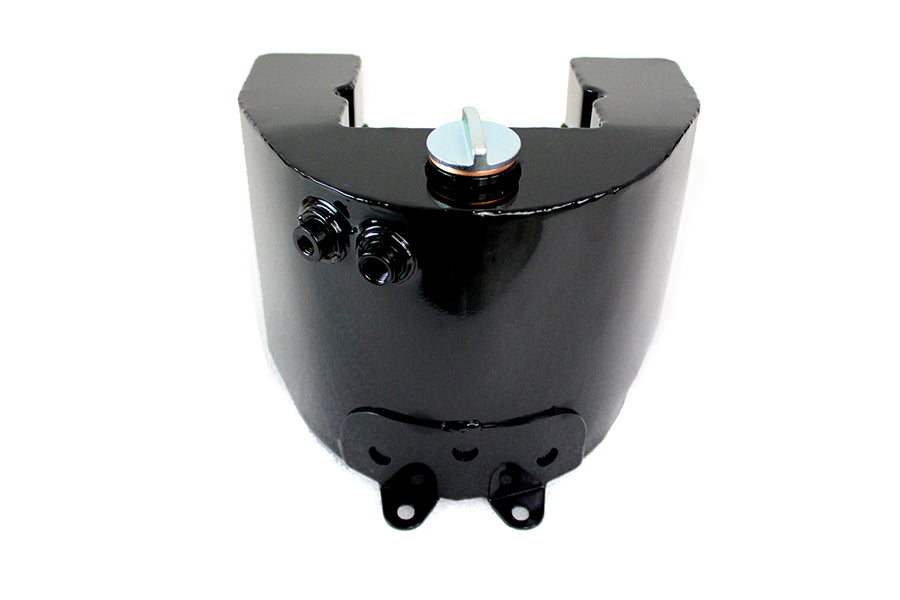

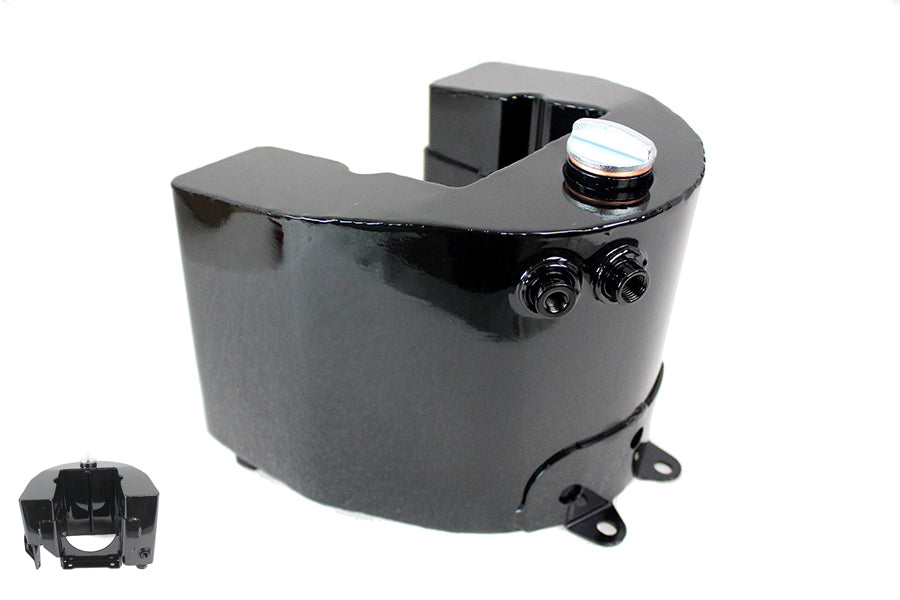

Replica 1936 Knucklehead wrap around oil tank is the original type with female fittings for banjo bolts. Features a non embossed smooth top lower panels and comes with a drain plug.

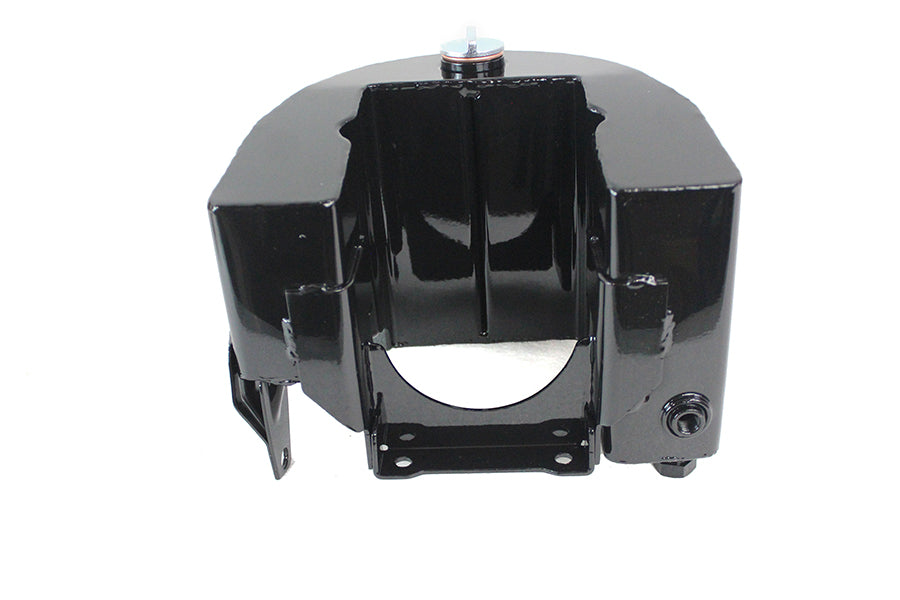

Black tank has a zinc plated cap and is equipped with a screw in dipstick that includes a copper sealing washer. Tank does not have battery rod tabs. *NOTE: Must order banjo bolts and fittings for oil lines separately. Lower right hand feed outlet must be tapped larger to fit a banjo bolt. *NOTE: Can be used in later applications by changing the battery rods to earth style battery rods. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall. The left vent hole is 3/8 inch-24 TPI and the right return hole is 1/2 inch-20 TPI. Clear threads with a tap before final assembly. (Recommended) Cap is included. Requires the purchase of rubber or steel fittings for oil lines.
MFG Part #:
Technote: Suggested to use with #40-0325 Oil Feed Valve Assembly Zinc Plated. Suggested to use with #3003-3 Oil Line Banjo Bolt and Washer Kit. Suggested to use with #3069-3 Oil Tank Vent Pipe Nipple Bolt and Washer Kit. Suggested to use with #42-0877 Replica Oil T
Dimensions:
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 7612-3 , 40-0877 , 40-0638 , 40-0480
NOTE: Part installation instructions are not provided unless a link is shown below:
