HARLEY Replica Black Tourist Trophy Bobber Short Oil Tank Fits EL 1936-1952, FL 1941-1957, UL 19

HARLEY Replica Black Tourist Trophy Bobber Short Oil Tank Fits EL 1936-1952, FL 1941-1957, UL 19

$202.94
$202.94 $227.00
Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:
08 Sep Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling

40-0493

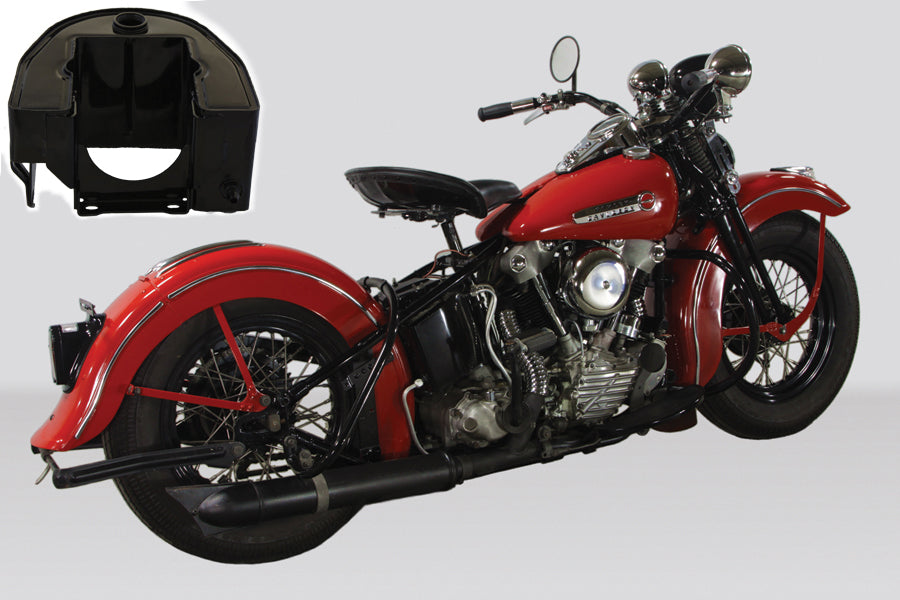

Harley Model / Year Fitment: EL 1936-1952, FL 1941-1957, UL 1940-1948,

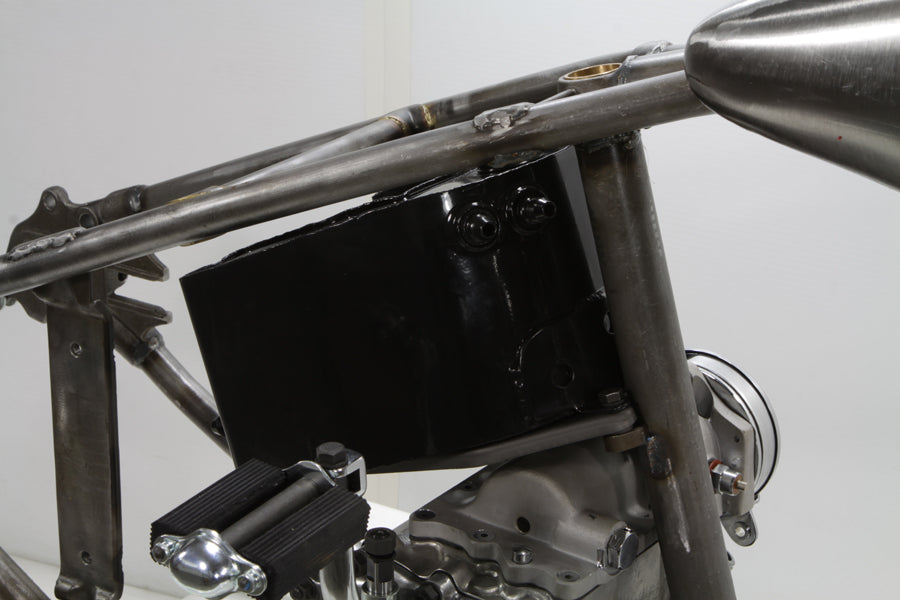

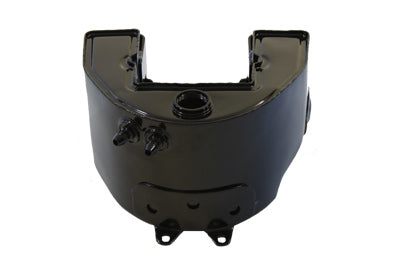

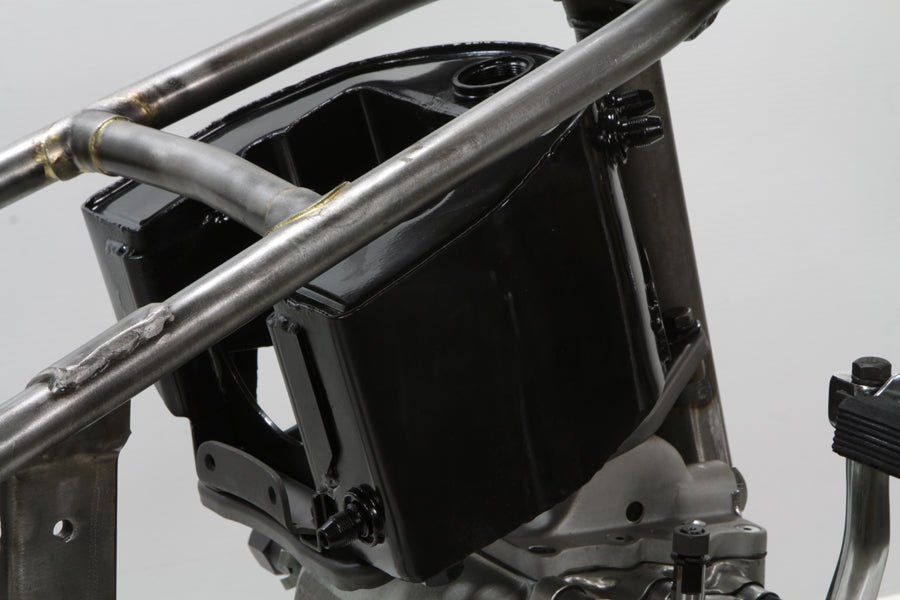

Replica black Tourist Trophy bobber rigid frame oil tank is 1-5/16 inch shorter to accommodate a raised position for chain alignment.
Tank raises the transmission and clutch pak for TT racing or hillclimbing for greater ground clearance. Battery compartment is short so a small battery is required. Chain guard will be in a raised position so modifications must be made to the front mounting tab as most TT bikes did not use a chain guard in the early racing era. Oil tank front mount must be removed and rewelded in place 1.25 inch upward. The feed line is on the bottom and the returna nd vent lines are interchangable. To raise the transmission mount plate use (5) 1-5/16 inch spacers and mount as stock. This will require (2) 3/8 inch-24 UNF x 3 inch bolts and (2) 3/8 inch-24 UNF x 2-1/2 inch bolts for the transmission plate on the 5th mount hole use (1) 3/8 inch-16 UNC x 2 inch bolt. The raising of the transmission with the use of the shorter inchTT inch oil tank also gives the advantage of the transmission and rear sprockets of being more inline for better power transmission thru the drivetrain. Does not include a bottom battery support bracket.
MFG Part #:
Technote: Suggested to use #8115-1 #8114-1 or #9504-1 timing plugs. Suggested to use with #37-1018 Black Spacer Set 3/8inch X 1inch X 1-5/16inch Suggested to use with #53-0520 Black H-3 6V Battery Suggested to use with #50-0549 Mini 12V 6 Amp AGM Battery Suggeste
Dimensions: Oil Line Threads: 9/16 inches -24 Length: 9-7/8 inches Width: 8 inches Height: 5 inches Battery Area Width: 4-3/4 inches Battery Area Length: 5 inches Battert Area Height: 5 inches
Replaces OEM:
Made in: TAIWAN
Available Replacement Components / Related Part #s : 42-0877 , 40-0488 , 31-0457
NOTE: Part installation instructions are not provided unless a link is shown below:
