Mfg/Brand: Wyatt Gatling
SKU:40-0429

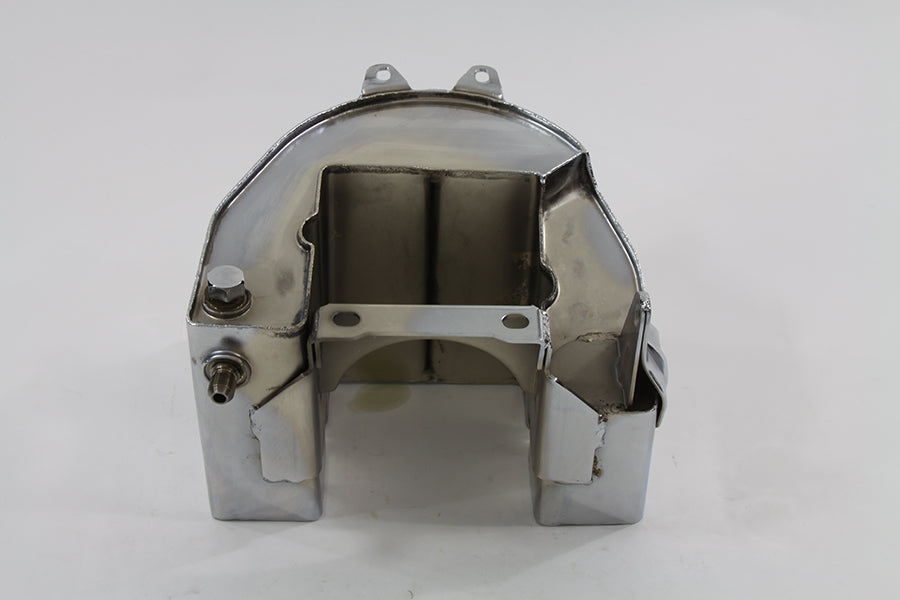

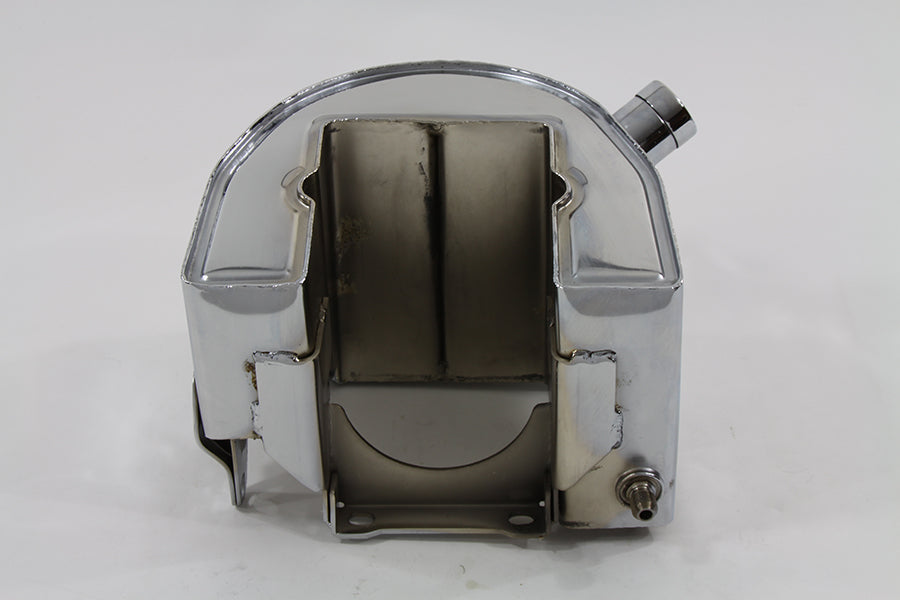

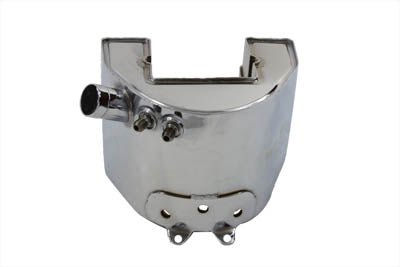

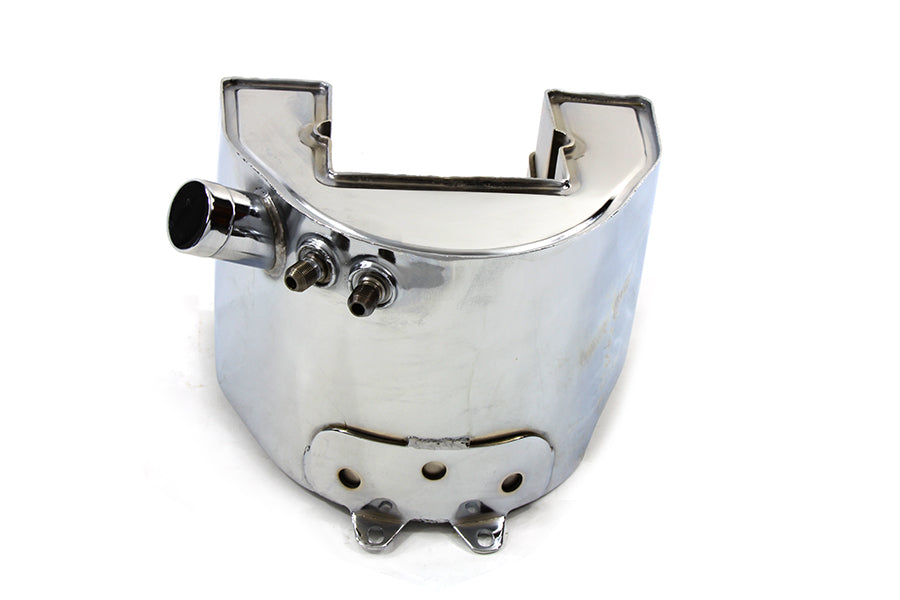

***LIMITED ITEM PLS ALLOW 4 BUSINESS DAYS HANDLING TO SHIP*** Replica chrome oil tank features side fill and wrap around type construction including seam-welded edges which show weld marks as on original tanks. Tank has a rubber plug. Use with 1936-1957 battery rod tab supports. Tank measures 10-1/4 inch wide X 7-1/8 inch tall. Battery box measures 7-1/8 inch tall X 4-1/4 inch wide. Oil fitting is 20 TPI x 9/16. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall. Suggested to use with #42-9940 battery rod set. FITS HARLEY: 1936-1940 EL, 1941-1964 FL, 1941-1948 UL, 62504-58
Dimensions: Height Front: 7 inches / Height Rear: 6 inches / Depth: 8 inches / Depth of Battery: 5 inches / Width: 10 inches / Battery Width: 4-3/4 inches
Replaces OEM: 62504-58
Suggested to use with #42-9940 battery rod set. / Suggested to use #8115-1 #8114-1 or #9504-1 timing plugs. / Suggested to use with #2071-10 Chrome Chain Guard and Oil Tank Mount Kit. / Suggested to use with #40-0877 WR Hex Barb Oil Line Fitting Set Zinc Plated
Instructions (if available, copy and paste link into browser): http://www.vtwinmfg.com/Instructions/40/40-0429.pdf
Made in: TAIWAN
