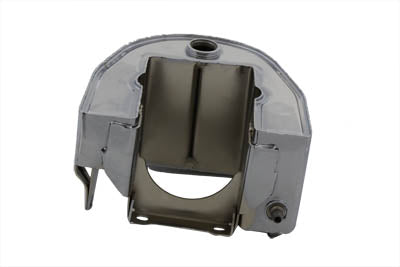

HARLEY Replica Chrome Tourist Trophy Bobber Short Oil Tank Fits Custom 0- , application for Rigid fr
HARLEY Replica Chrome Tourist Trophy Bobber Short Oil Tank Fits Custom 0- , application for Rigid fr
Regular price
$202.94
Sale price
$202.94
Regular price
$227.00
Unit price
/
per
Shipping calculated at checkout.
Hurry up! Only 3 items in stock.
Expected delivery date:
03 Sep
Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling
SKU:40-0488
Harley Model/Year Fitment: Custom 0- , application for Rigid frame EL 1936-1952, FL 1941-1957,
Replica chrome Tourist Trophy Bobber oil tank is 1-5/16 inch shorter in order to accommodate a raised position for chain alignment.
NOTE: Purpose of tank is to raise the transmission and clutch pak for TT racing or hillclimbing for greater ground clearance. Raise transmission mount plate with 1-5/16 inch spacers and mount as stock. Battery compartment is shorter in this tank so a smaller battery is required. Chain guard will be in a raised position so modifications must be made to the front mount tab. Most TT bikes did not use a chain guard in the early racing era. Use (2) 3 inch x 3/8 inch SAE bolts and (2) 2-1/2 inch x 3/8 inch SAE bolts to mount transmission plate. Oil tank front frame mount must be removed and rewelded in place 1.25 inch upward. Requires use of a spacer on the 5th transmission mount bolt also. The raising of the transmission with the use of the shorter inchTT inch oil tank also gives the advantage of the transmission and rear sprockets of being more inline for better power transmission thru the drivetrain.
MFG Part #:
Technote: Suggested to use #8115-1 #8114-1 or #9504-1 timing plugs. Suggested to use with #37-1018 Black Spacer Set 3/8inch X 1inch X 1-5/16inch Suggested to use with #53-0442 6 Volt 12 Amp Rechargeable Sealed Battery. Suggested to use with #53-0444 12 Volt 5 AH
Dimensions: Height Front: 5-7/8 inches Height Rear: 5 inches Depth: 8 inches Depth of Battery: 5 inches Width: 10 inches Battery Width: 4-3/4 inches
Replaces OEM:
Made in: TAIWAN
Available Component Replacements and Suggested Accessory Part #s : 49-7577 , 40-0493 , 31-0544
NOTE: Part installation instructions are not provided unless a link is shown below:
