HARLEY Replica inchHM inch Straight Leg Rigid Frame Fits 0- Custom, application 1948-1984 FL,

HARLEY Replica inchHM inch Straight Leg Rigid Frame Fits 0- Custom, application 1948-1984 FL,

$2,075.28
$2,075.28 $2,161.75
Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:
28 Jun Orders ship in 3-4 business days
Mfg/Brand: V-Twin

51-1955

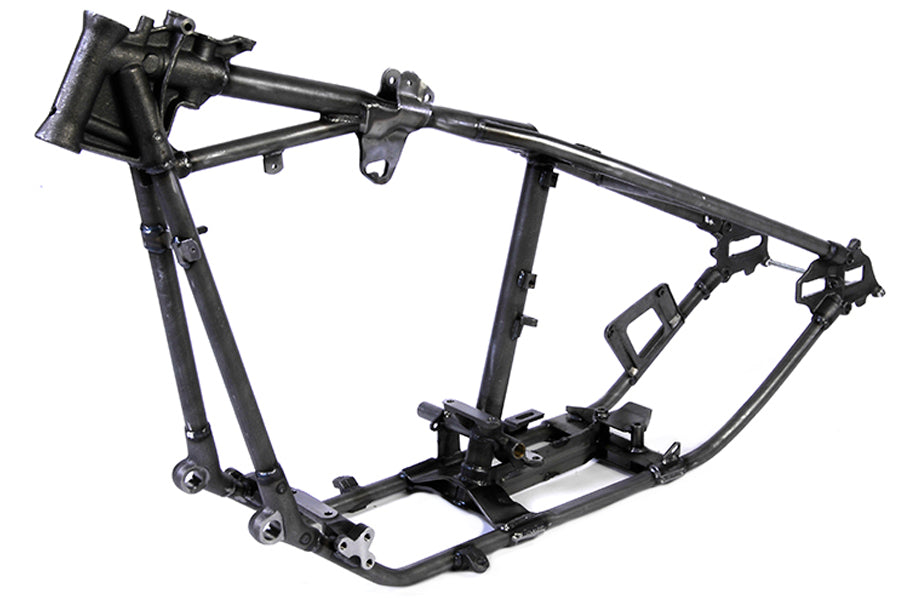

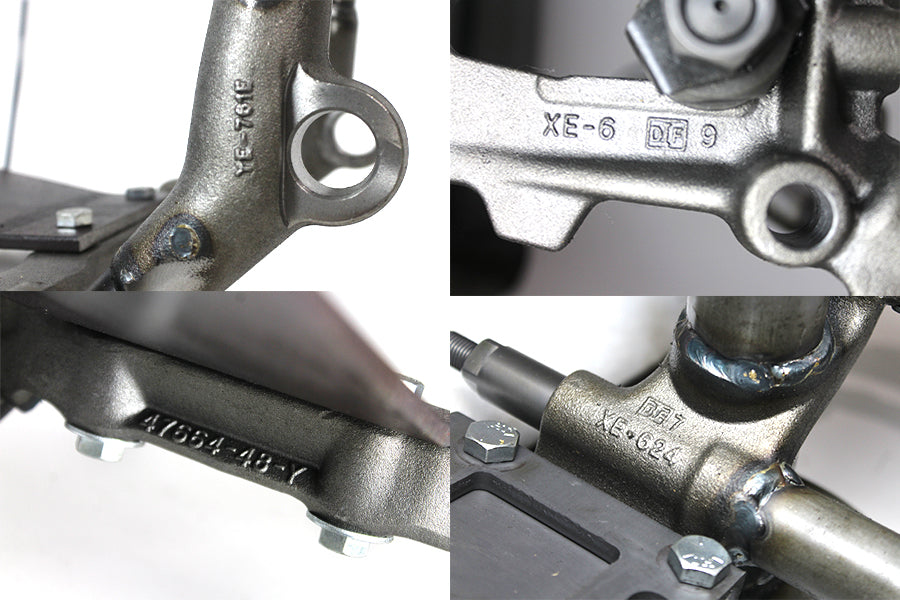

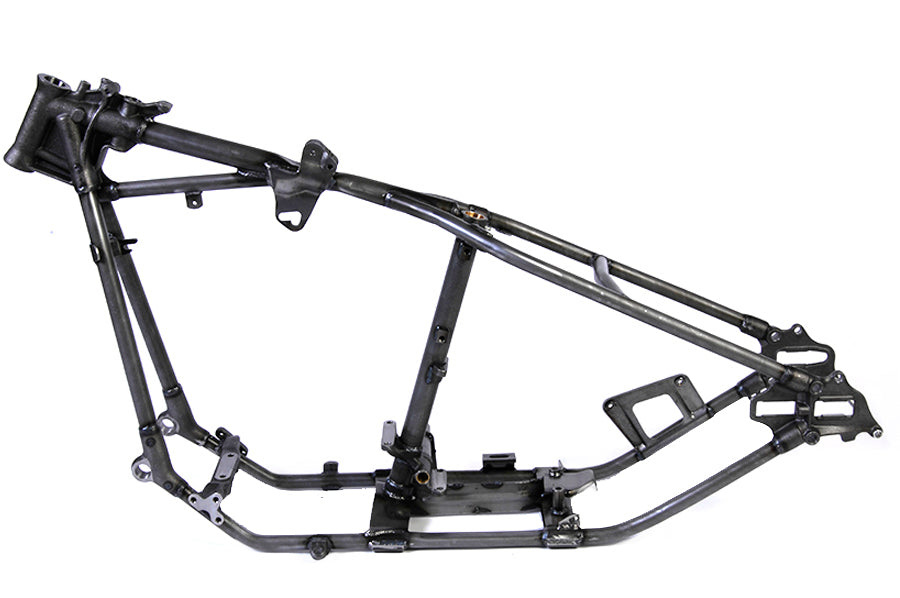

Replica inchHM inch straight leg rigid frame is an authentic reproduction of the 1954-1957 straight leg frame with stock 30� neck rake. Features cross tube to accept mechanical rear brake assembly with a star hub wheel with chain drive. Forged parts include: neck front and rear engine mount side car mounts top seat yoke and footboard tabs. This mechanical frame will accept a neck lock. Front engine mount spacer will allow installation of a Knucklehead or Flathead engine. Frame will accept all Panhead and Shovelhead engines. *NOTE: Cross shaft seat post transmission plate and rear axle assembly are included. *NOTE: Must order tapered bearing neck cups separately. *NOTE: This inchHM inch type has forgings with original markings. V-Twin MFG supplys a Bill of Sale only referencing the part number. *NOTE: V-Twin replica frame now has forged parts with hallmark numbers and marks in these positions: seat yoke side car loops rear axle plates and transmission front and rear motor mounts. FITS HARLEY: 0- Custom, application 1948-1984 FL,
MFG Part #:
Technote: In some instances it may be necessary to ream or file holes slightly in order to assemble parts onto the frame. Use #31-0475 Front Engine Mount Spacer to accept 1936-1947 Kucklehead or Flathead engines in 1948 - up frames. Features #31-0528 Replica Tool Box Mounting Bracket. *NOTE: Replica inchHMinch is our updated version with forging hallmarks on many of the components. *NOTE: Features the following forged parts with HallMark numbers and marks: seat yoke front motor mount side car loops rear axle plates and transmission front/rear mounts. Required to use with #24-0121 Zinc Fork Neck Cup Set with Races.
Dimensions:
Replaces OEM:
Made in: TAIWAN
NOTE: Part installation instructions are not provided unless a link is shown below:
