HARLEY Replica Knucklehead Frame Fits FL 1941-1946, early 1946 EL 1941-1946, early 1946 U 1941-1946,

HARLEY Replica Knucklehead Frame Fits FL 1941-1946, early 1946 EL 1941-1946, early 1946 U 1941-1946,

$1,978.20
$1,978.20 $2,060.62
Shipping calculated at checkout.

Hurry up! Only 4 items in stock.

Expected delivery date:
10 Oct Orders ship in 3-4 business days
Mfg/Brand: V-Twin

51-1941

Harley Model / Year Fitment: FL 1941-1946, early 1946 EL 1941-1946, early 1946 U 1941-1946, early 1946

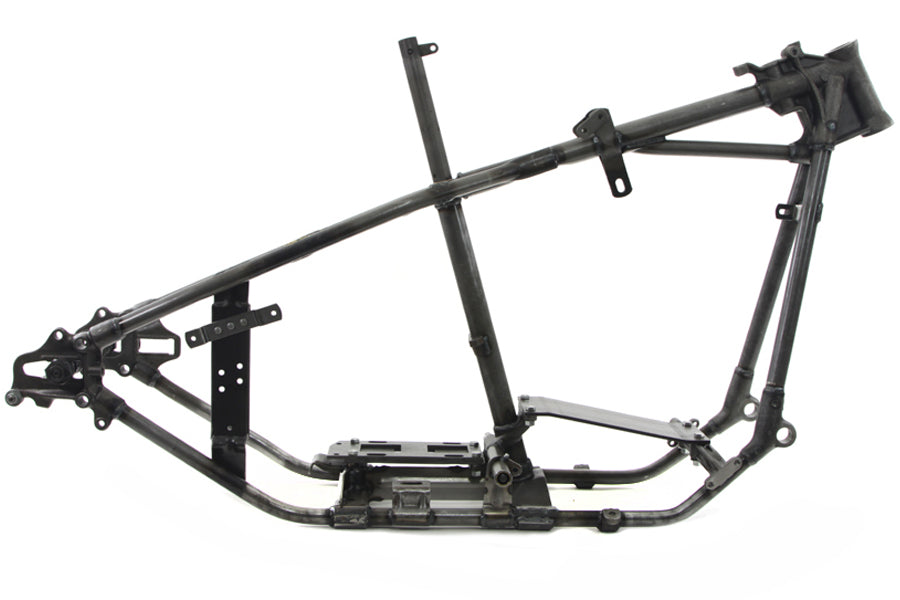

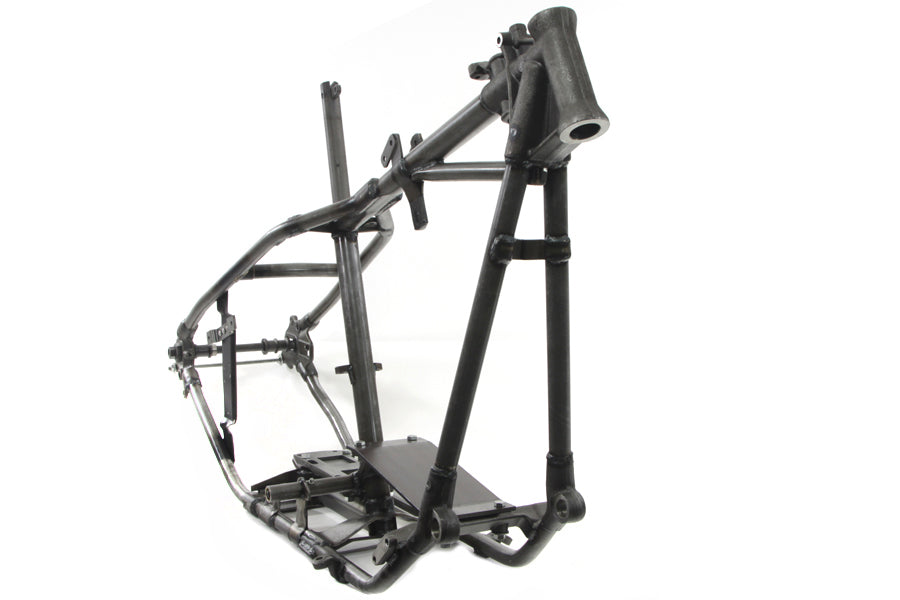

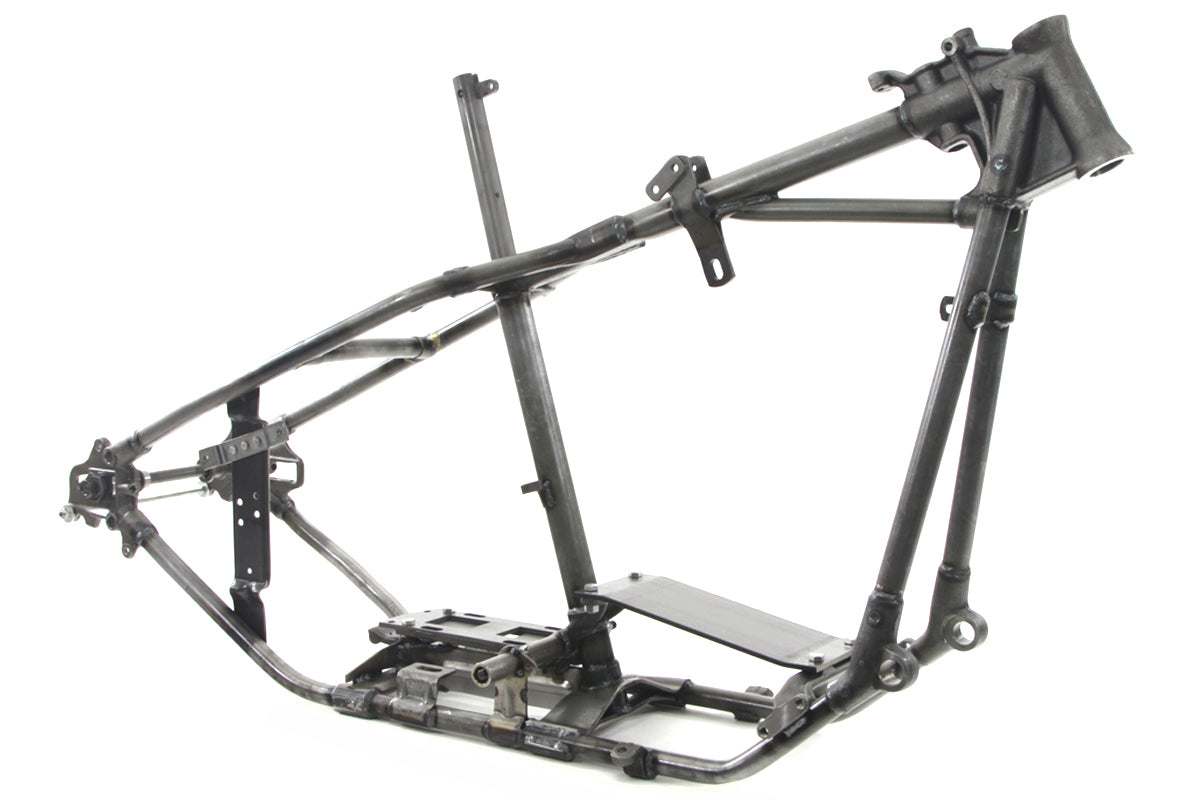

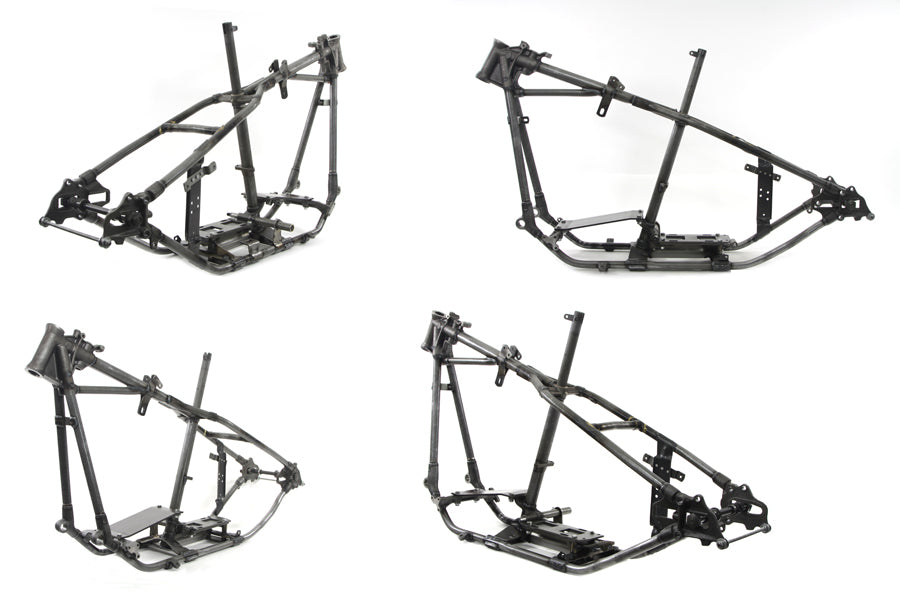

Knucklehead rigid frame is an authentic reproduction of the factory style frame.
Includes seat post assembly transmission mount plate and rear axle kit installed. The 29ｰ neck angle will accept inline spring forks. This frame measures 13-11/16 inch from the rear motor mount following the seat post and straight up to the backbone. Features exact replica inchsaddles inch brazed at each end for read render crossbar support. Frame requires purchase of clamp on coil bracket kit. **NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. For this reason frames will not be accepted for return (RGA). *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplys a Bill of Sale only referencing the part number.
MFG Part #:
Technote:
Dimensions:
Replaces OEM: 47003-41 2802-41
Made in: TAIWAN
Available Replacement Components / Related Part #s : 51-1040 , 48-1331
NOTE: Part installation instructions are not provided unless a link is shown below:
