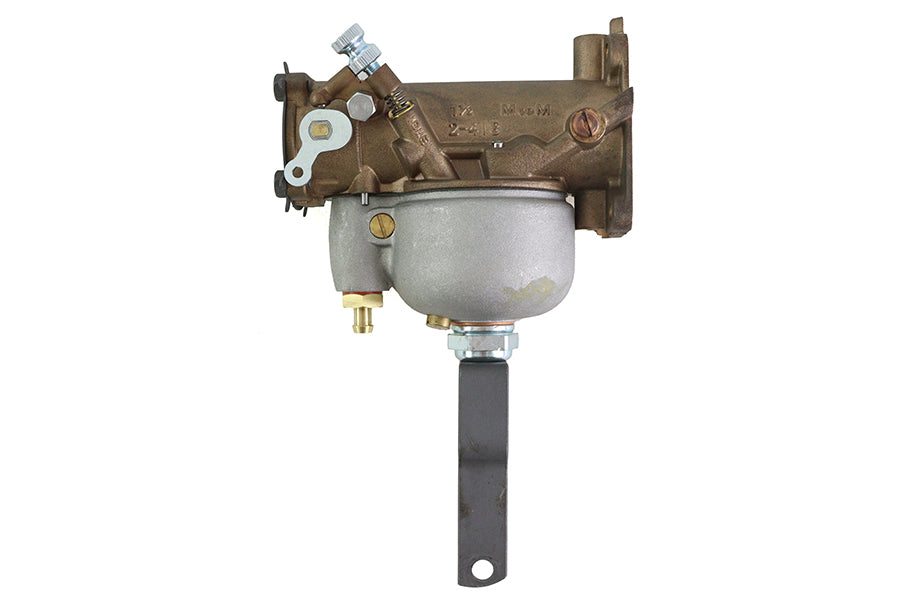

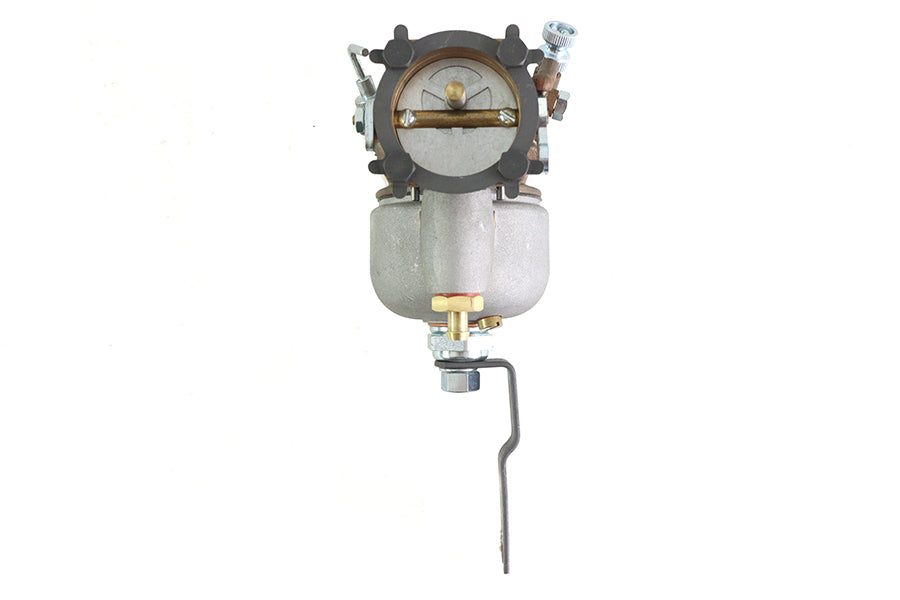

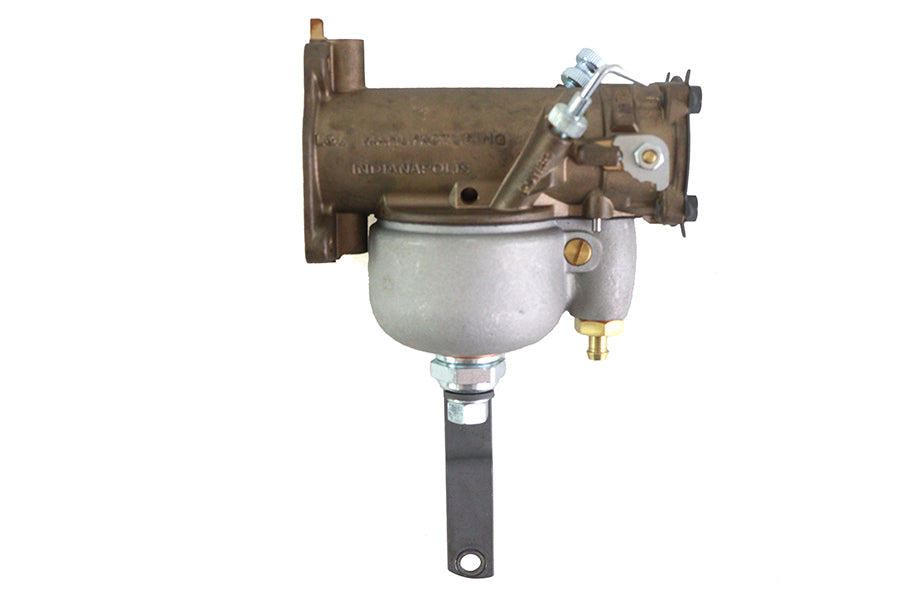

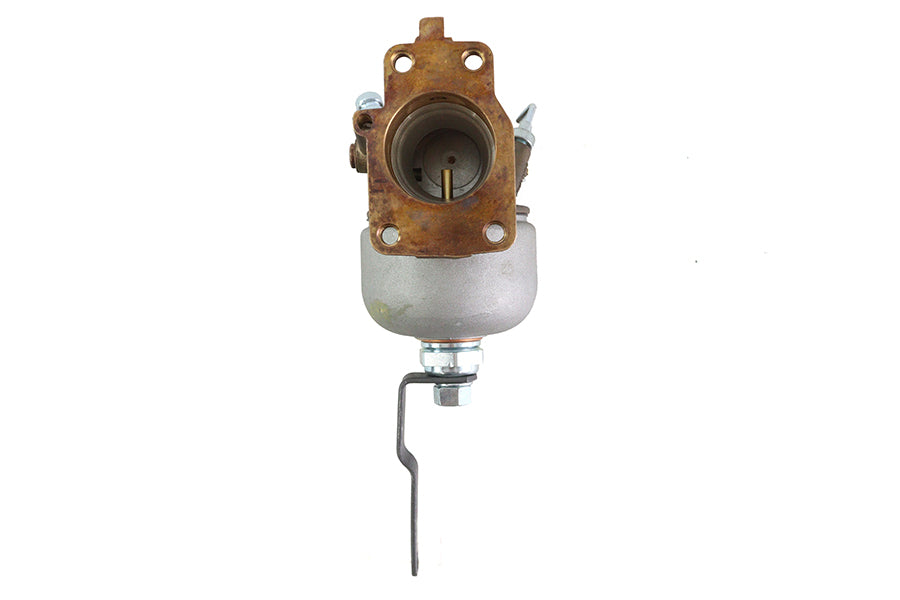

Replica M-74 Linkert carburetor is assembled and includes a complete replica linkert carburetor body with a 4 bolt mount flange with full brass construction. All linkerts are supplied in natural finish or painted black as original. 1-1/2 inch carburetor assembly includes the top throttle arm assembly installed and with a 1-5/8 inch venturi. *NOTE: Must order related parts and hardware separately. Throttle arm supplied is specifically for 1949-1965 FL models. ***NOTE: Sold outright. No exchange necessary. All parts are brand new including the nitrophyl inchunsinkable inch float. Assembled by the V-Twin Motor Shop in New York! FITS HARLEY: 1948-1965 FL,
MFG Part #:
Technote: Raise float level 1/8inch. Increase the size of the small idle slot hole behind the plug by .005inch from .020inch to .025inch. Cut baloney slice on top of main jet and face toward motor for more spray. *NOTEinch M-74 jet goes toward the high speed needle the other holes get plugged.
Dimensions:
Replaces OEM: 27130-48 1134-48A
Made in: TAIWAN
NOTE: Part installation instructions are not provided unless a link is shown below:
