HARLEY Replica Oil Tank Chrome with Smooth Top Fits EL 1936-1940, FL 1941-1957, UL 1938-1947,
HARLEY Replica Oil Tank Chrome with Smooth Top Fits EL 1936-1940, FL 1941-1957, UL 1938-1947,
Regular price
$360.60
Sale price
$360.60
Regular price
$391.96
Unit price
/
per
Shipping calculated at checkout.
Hurry up! Only 3 items in stock.
Expected delivery date:
03 Sep
Orders ship in 3-4 business days
Mfg/Brand: Wyatt Gatling
SKU:40-0620
Harley Model/Year Fitment: EL 1936-1940, FL 1941-1957, UL 1938-1947,

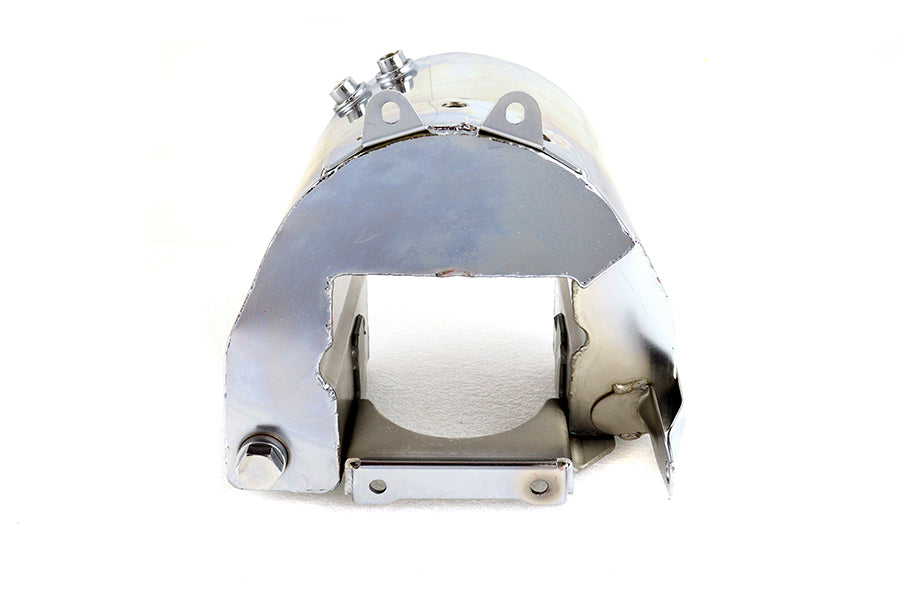

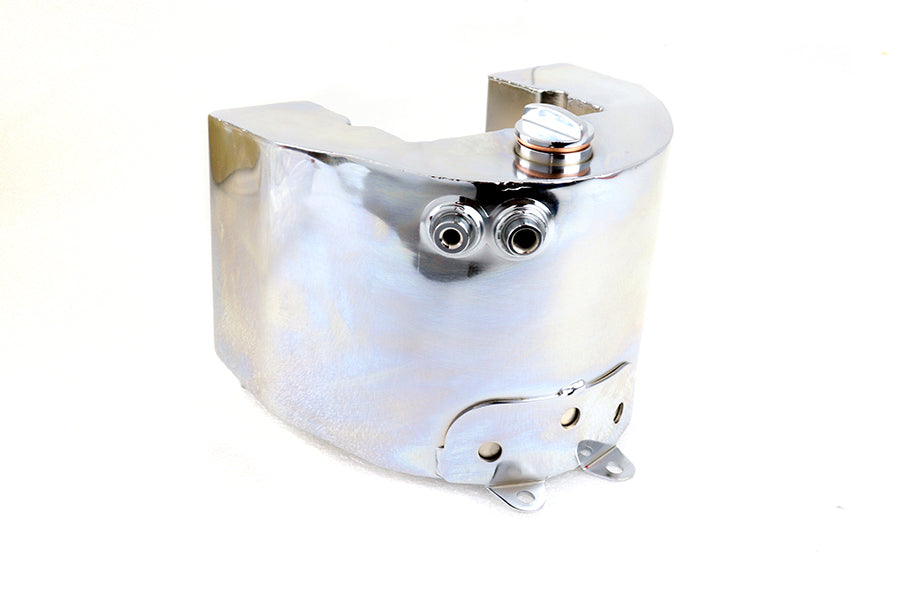

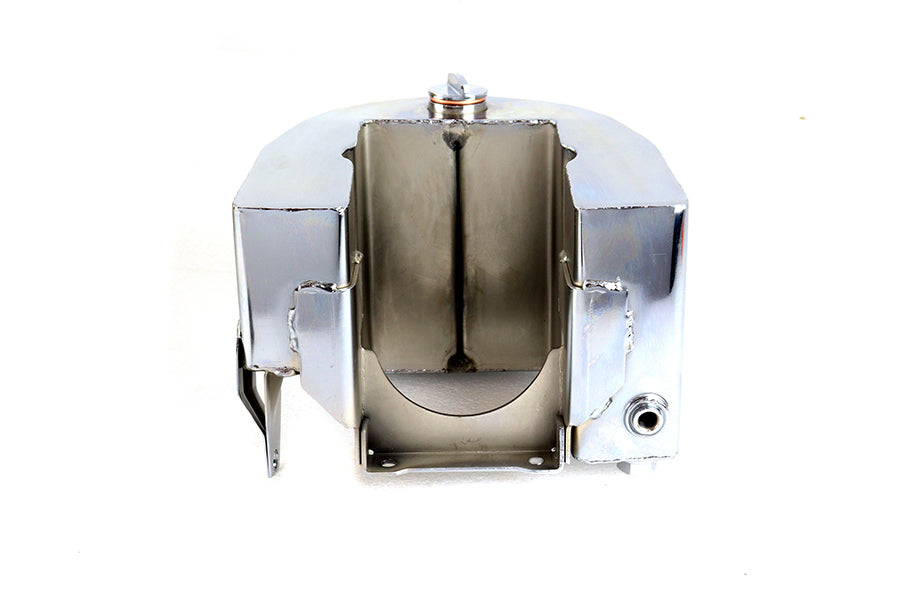

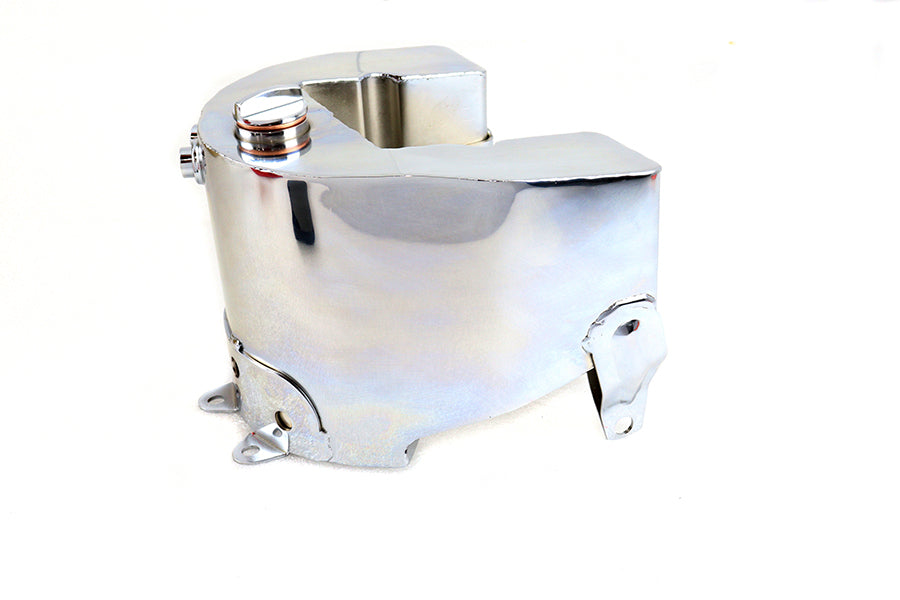

Replica 1936 Knucklehead wrap around oil tank is the original type with female fittings for banjo bolts. Features a non embossed smooth top and lower panels.
Tank is equipped with a screw in dipstick. Tank does not have battery rod tabs. *NOTE: Must order banjo bolts and fittings for oil lines separately. Lower right hand feed outlet must be tapped larger to fit a banjo bolt. *NOTE: Can be used in later applications by changing the battery rods to earth style battery rods. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall. The left vent hole is 3/8 inch-24 TPI and the right return hole is 1/2 inch-20 TPI. Clear threads with a tap before final assembly. (Recommended) Cap is included. Requires the purchase of rubber or steel fittings for oil lines.
MFG Part #:
Technote: Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit. Suggested to use with #3003-3 Oil Line Banjo Bolt and Washer Kit. Suggested to use with #3069-3 Oil Tank Vent Pipe Nipple Bolt and Washer Kit. Suggested to use with #42-0877 Replica O
Dimensions:
Replaces OEM:
Made in: TAIWAN
Available Component Replacements and Suggested Accessory Part #s : 40-0877 , 40-0638 , 40-0480 , 3003-3
NOTE: Part installation instructions are not provided unless a link is shown below:
