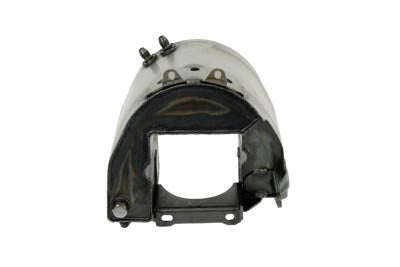

HARLEY Replica Raw Oil Tank fits 1938-1947 UL, 1936-1940 EL, 1941-1957 FL,

HARLEY Replica Raw Oil Tank fits 1938-1947 UL, 1936-1940 EL, 1941-1957 FL,

$175.32
$175.32 $192.24
Shipping calculated at checkout.

Out of stock

Mfg/Brand: Wyatt Gatling

40-0489

***LIMITED ITEM PLS ALLOW 4 BUSINESS DAYS HANDLING TO SHIP*** Replica raw oil tank features wrap around construction including seam-welded edges which show weld marks as on original tanks. Tank is equipped with a screw in dipstick but does not have battery rod tabs. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall. FITS HARLEY: 1938-1947 UL, 1936-1940 EL, 1941-1957 FL,
This part only fits the models shown above! Please contact us with any additional fitment questions you may have.
MFG Part #: 40-0489
Replaces OEM #: 62504-38
Alt Part #:
Dimensions: Height Front: 7-1/8 inches, Height Rear: 6-1/2 inches, Depth: 7-3/4 inches, Depth of Battery: 5 inches, Width: 10 inches, Battery Width: 4-7/8 inches
Suggested to use #8115-1 #8114-1 or #9504-1 timing plugs.
Instructions (if available, copy and paste link into browser): http://www.vtwinmfg.com/Instructions/40/40-0489.pdf
Made in: TAIWAN
