HARLEY Rocker Clutch Pedal Parkerized Fits EL 1936-1938, U 1936-1938,

HARLEY Rocker Clutch Pedal Parkerized Fits EL 1936-1938, U 1936-1938,

$180.51
$180.51 $201.91
Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:
16 Sep Orders ship in 3-4 business days
Mfg/Brand: V-Twin

49-0471

Harley Model / Year Fitment: EL 1936-1938, U 1936-1938,

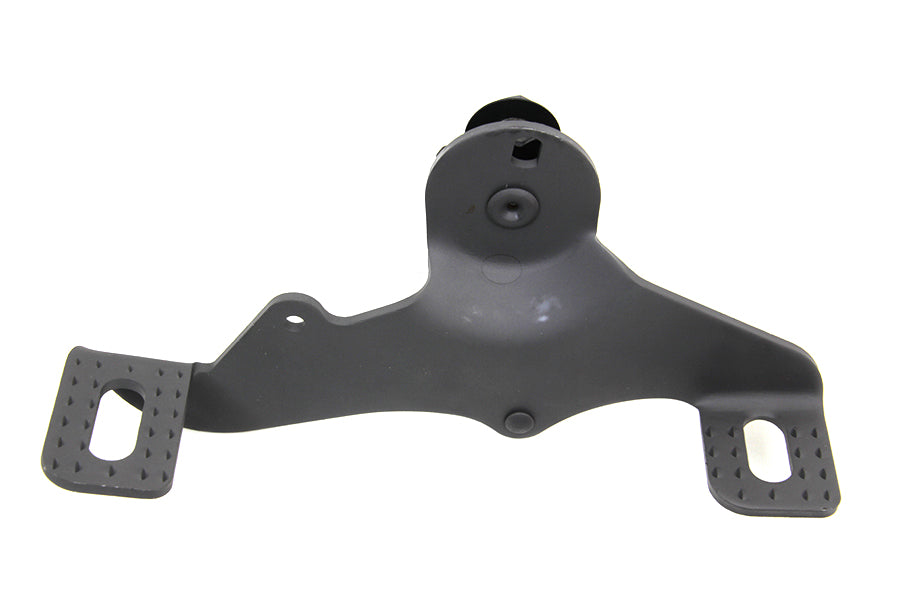

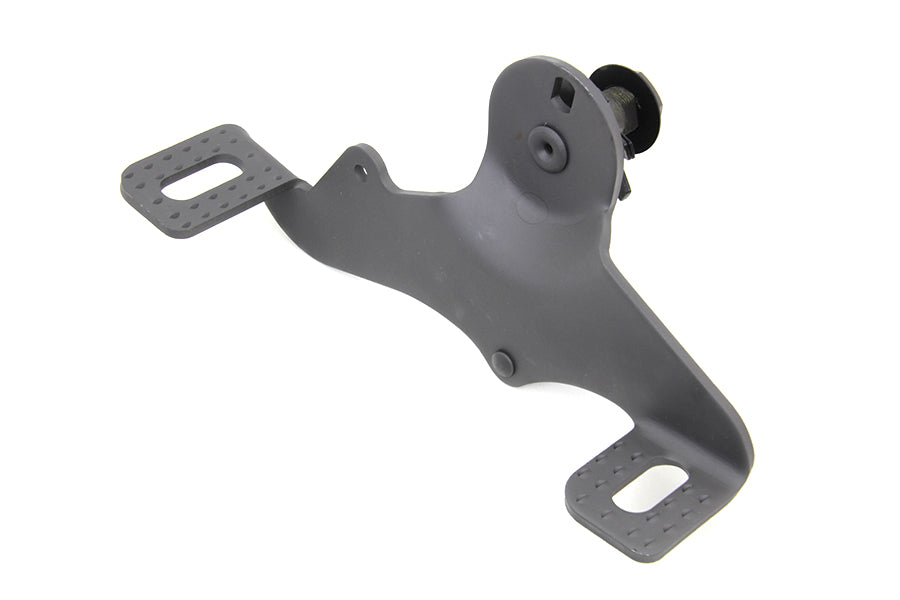

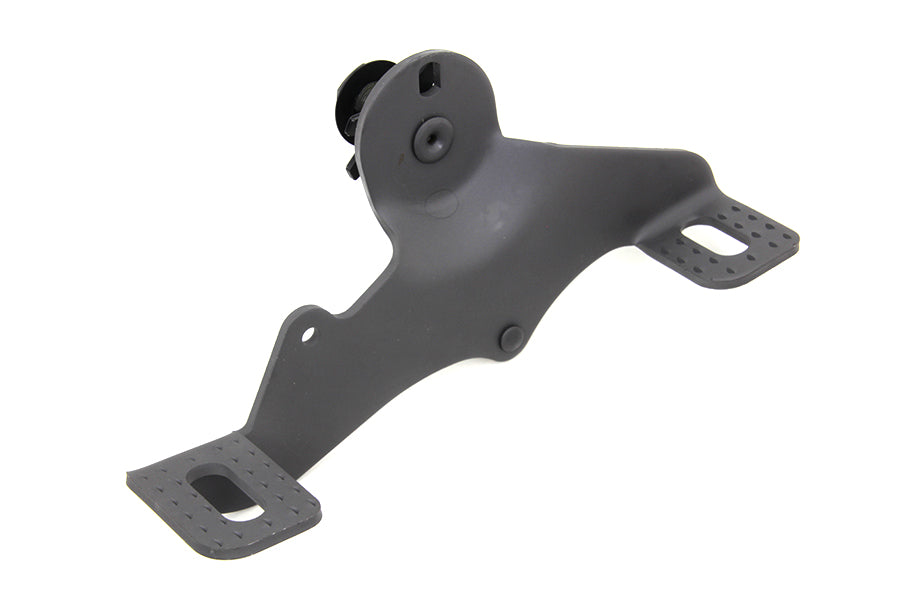

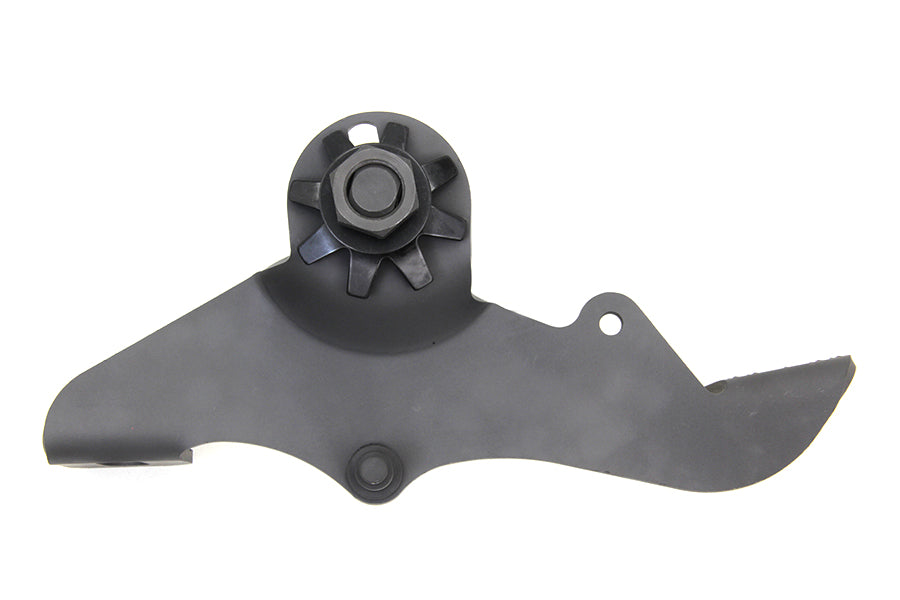

Early style rocker clutch pedal is parkerized as original and includes all components shown.
This Rocker Clutch Pedal replica is not exact but is very close in shape and authenticity to the original as used on 1936-37 EL and 1937 UL models. This pedal has a distinctive shape and configuration. The center of the clutch rod stud hole is approximately 5/16 inch from the lower edge. The heel pad bends outwardfrom the lower edge and the top edge between the toe pad and spring hole features a sharp incline above and around the hole. The pedal does not have the inchdog leg inch bend found on later models. The overall length and position of therod stud will fit for Big Twin application. This pedal may be altered to be exact as original if desired for the 100 point look! Some material can be removed to achieve this exact shape. Bracket may be required available separately.
MFG Part #:
Technote:
Dimensions: Height: 4-1/4 inches Length: 9-1/8 inches Pivot Shaft Length: 1-7/16 inches
Replaces OEM: 2409-36A
Made in: TAIWAN
Available Replacement Components / Related Part #s : 49-1923 , 49-1519 , 49-0472 , 28-0986 , 22-1675 , 22-0997 , 18-0575
NOTE: Part installation instructions are not provided unless a link is shown below:
