HARLEY Smooth Flatside Style Cast Cam Cover fits 1966-1969 FL,
HARLEY Smooth Flatside Style Cast Cam Cover fits 1966-1969 FL,
Regular price
$255.46
Sale price
$255.46
Regular price
$280.11
Unit price
/
per
Shipping calculated at checkout.
Hurry up! Only 3 items in stock.
Expected delivery date:
10 Dec
Orders ship in 3-4 business days
Mfg/Brand: Motorshop
SKU:10-0079

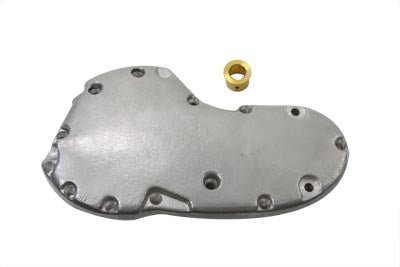

Replica cast cam cover flatside style constructed of natural aluminum with bushings installed. Cover features natural cast finish as original! For Shovelhead models.

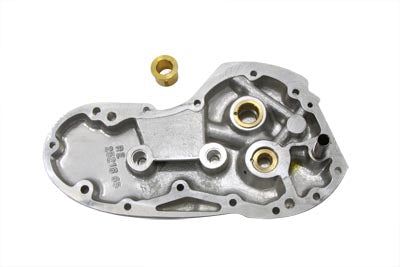

***LIMITED ITEM PLS ALLOW 4 BUSINESS DAYS HANDLING TO SHIP*** Replica cast cam cover flatside style constructed of natural aluminum with bushings installed. Cover features natural cast finish as original! For Shovelhead models. Cam cover bushings must be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink check with screw head before installation. *NOTE: Check oil passage (drilled hole) into bronze bushings either on existing bushings or when replacing bushings. Cover may be machined for OHO(overhead oiler) screw as flatside smooth style cast cam cover is OHO type and required oil feed bolt. Generator holes for 32E 6 volt 2 brush generators are 1/4 inch on Pre-1957 models and 5/16 inch on 1958-1969 models. *NOTE: Not drilled for oil passage bolt. FITS HARLEY: 1966-1969 FL,
This part only fits the models shown above! Please contact us with any additional fitment questions you may have.
MFG Part #: 10-0079
Replaces OEM #: 25216-66
Alt Part #:
Dimensions:
*NOTE: Final reaming for fit should be completed with cover on the right side case reamed from the left side.
Instructions (if available, copy and paste link into browser):
Made in: TAIWAN
