HARLEY VL Spring Fork Top Triple Tree White Zinc Fits EL 1936-1945, VL 1930-1936, FL 1941-1945,

Name: HARLEY VL Spring Fork Top Triple Tree White Zinc Fits EL 1936-1945, VL 1930-1936, FL 1941-1945,
Brand: V-Twin
SKU: 49-1104
Price: 108.34 USD
Availability:  InStock

$108.34

$108.34 ~~$121.19~~

Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

Expected delivery date:

16 Sep Orders ship in 3-4 business days

Mfg/Brand: V-Twin

SKU:49-1104

Harley Model / Year Fitment: EL 1936-1945, VL 1930-1936, FL 1941-1945,

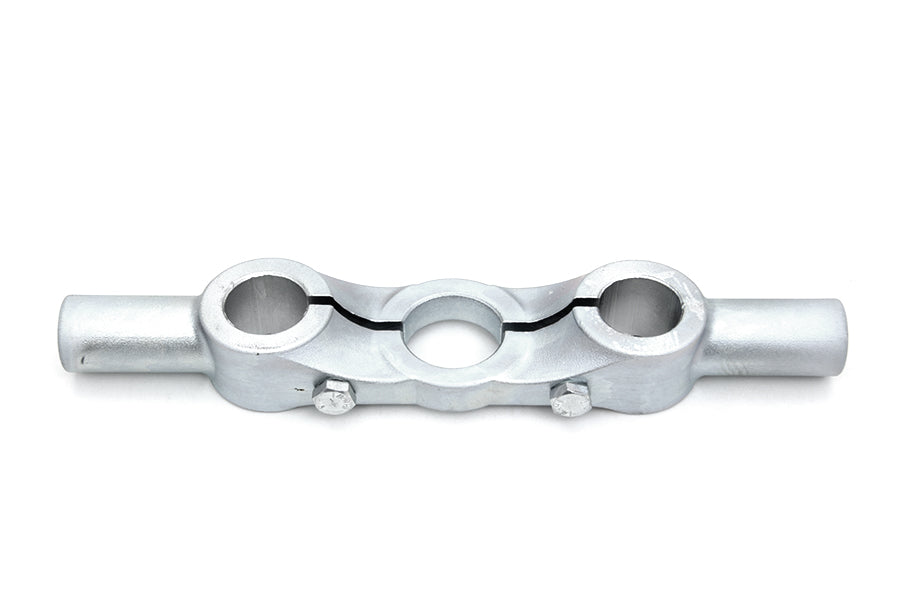

Spring Fork Inline top triple tree with ears features cast steel construction with white zinc finish.

Exact replica of the Original VL design. Accepts dog bone or flanders risers with 1 inch outer diameter ears. Inner diameter of holes for mounting on 1936-1957 Spring Forks must be honed out to 1.05 inch in order to fit most Spring Forks. The length from one side of the center hole to the other center hole measures 2-1/2 inch. Is designed to fit VL & RL spring fork 1930-1936 and 1936-1957 inline Big Twin and 1945 spring fork. *NOTE: Designed for 1930-36 VL + RL inchI inch beam type forks but will work on later models with modification.

MFG Part #:

Technote:

Dimensions: Center to Center: 4-3/4 inches

Replaces OEM:

Made in: TAIWAN

Available Replacement Components / Related Part #s : 49-1868 , 49-0619 , 49-0504 , 24-1569

NOTE: Part installation instructions are not provided unless a link is shown below:
